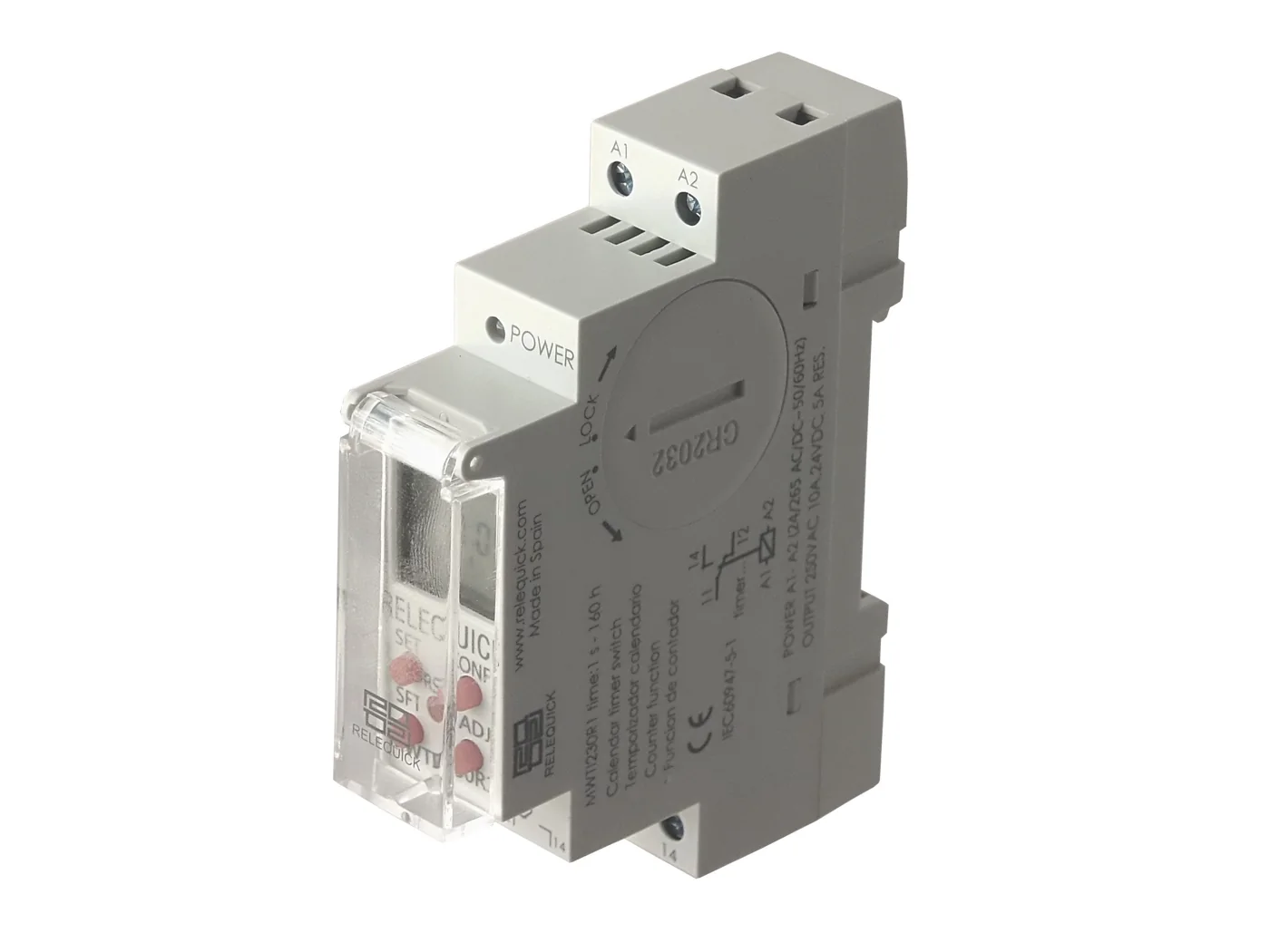

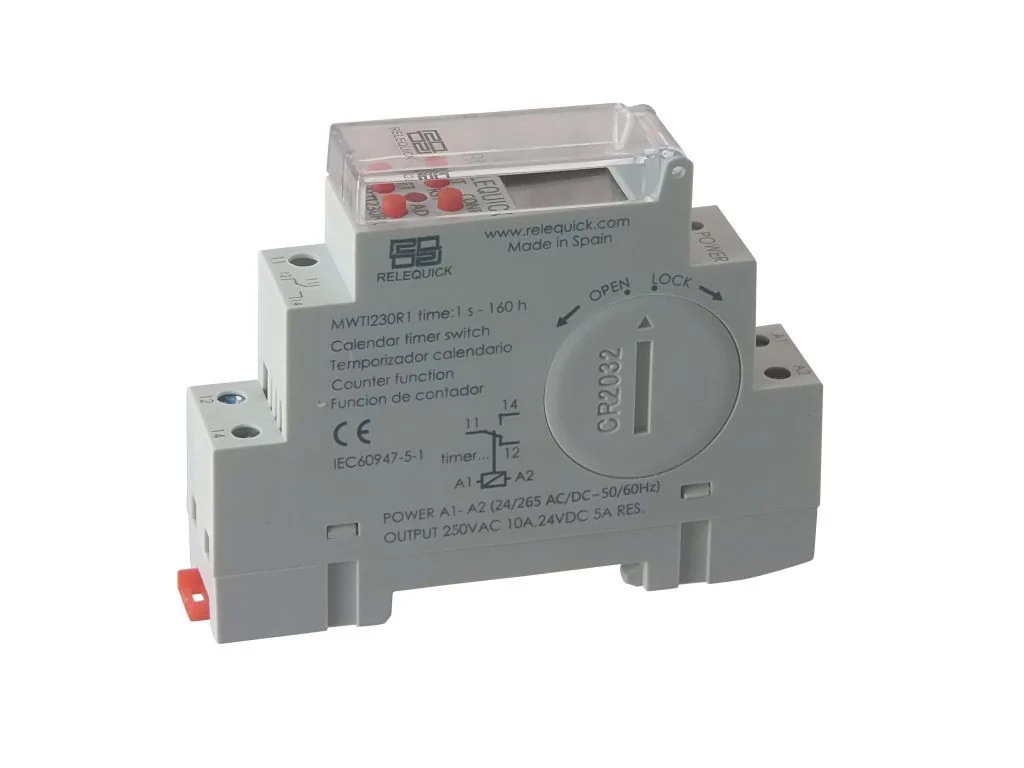

MWTI230R1 digital time switch
Daily or weekly program · 40 operations
Not sure which model to choose? Write to us.Features
- Digital weekly timer switch module, ideally suited for daily different programs and time controls.
- Up to 20 different ON/OFF switching operations possible every day or some certain days per week.
- Also include a countdown function: delay time ON and OFF.
- Automatic (AUTO, ON AUTO and OFF AUTO) or forced ON/OFF operation.
- Easily-replaceable battery 3V (CR2032) to keep the settings more than a year.
Attached documents
- Download file:
Technical specifications
| Power supply | 24 ~ 265 VAC (50 - 60 Hz) 24 ~ 265 VDC |
|---|---|
| Contact configuration | SPDT (1 NO / 1 NC) |
| Max. switching current | 10 A |
| Rated power consumption | ≤4 VA (AC) / ≤5 W (DC) |
| Time range | 1 min ~ 168 hours |
| Timing error | ±2 seconds/day |
| Min. range | 1 min |
| Ambient temperature range | -10 °C ... 50 °C |
| Relative humidity | <95% |
| Weight | 75 gr |
| Battery | 3V button battery (CR2032) |
| Mounting | 35 mm rail |
