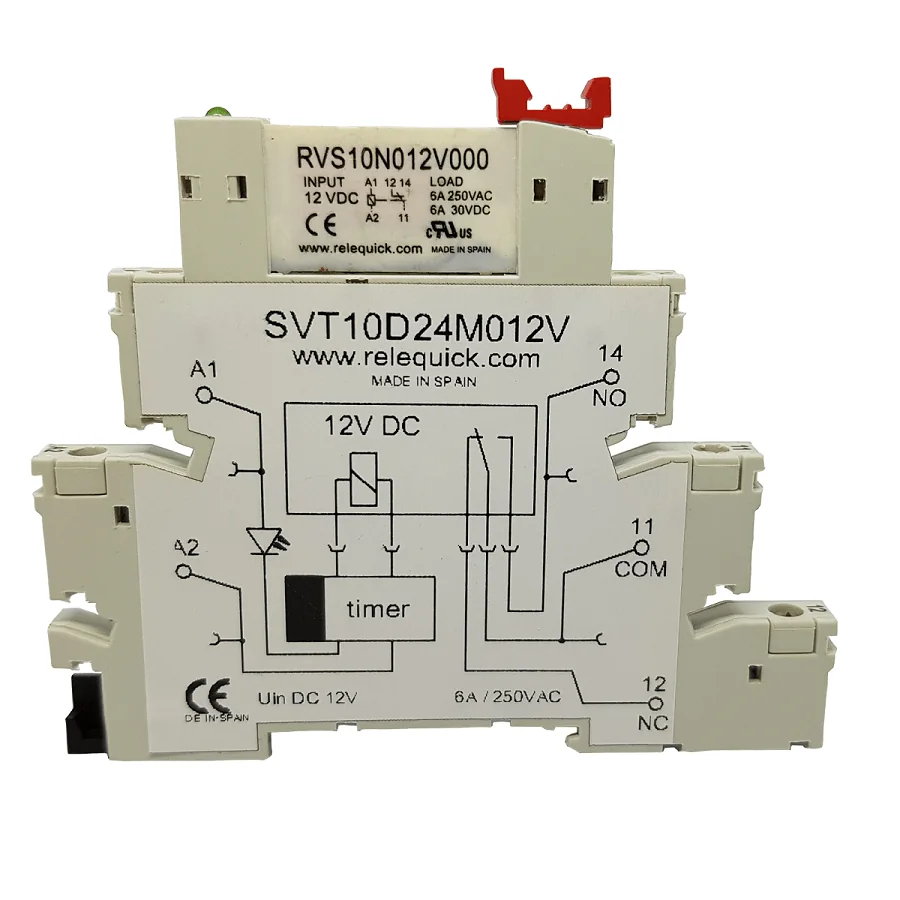

6 A Slimline timer

Name: Slimline DIP 6.2 mm. Timer
Brand: Relequick

6.2 mm · from 10 s to 24 h

Not sure which model to choose? Write to us.

Features

Adjustable timer by DIP for the disconnection timing of PCB type relays (5.08 mm).
It can be mounted on a DIN rail and thanks to its size (6.2 mm) and its compact design it will occupy a minimum space in any control panel.
Function "On Pulse" (Delay to the disconnection) adjustable in a wide range of timing (from 10 seconds to 24 hours), depending on the model. Apply power to timer & 0utput contacts transfer immediately. After the preset time has elapsed, contacts reset.

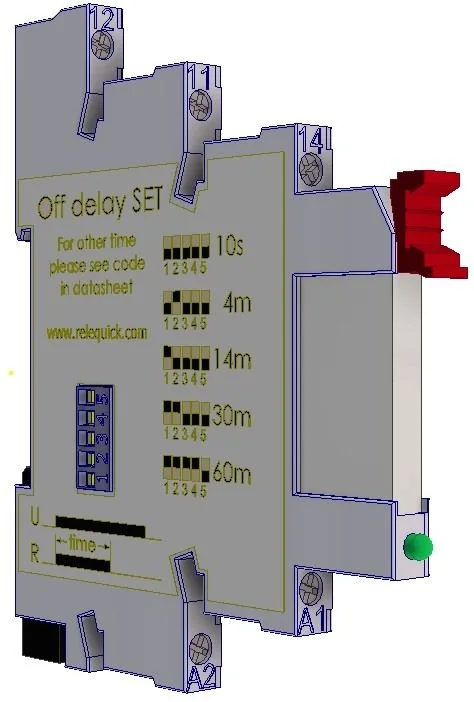

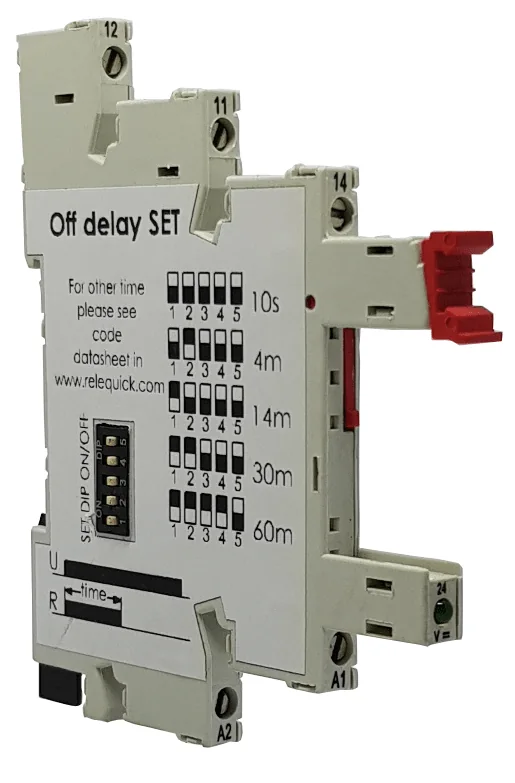

Very easy to adjust, selecting the position of the DIPs according to the attached table.

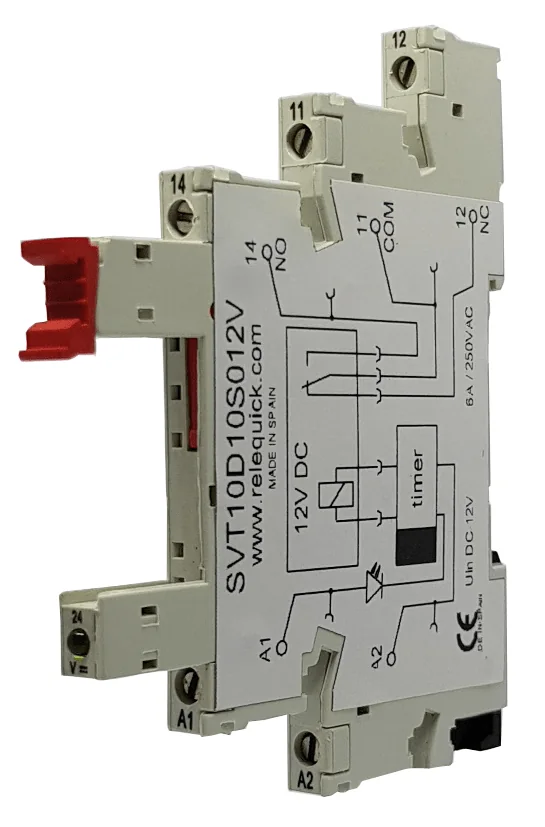

Two Models SVT10D10S012V, (from 10 seconds to 75 minutes) and SVT10D24H012V, (from 1.5 hours to 24 hours).
