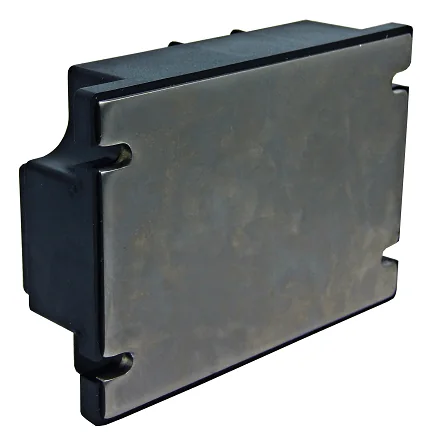

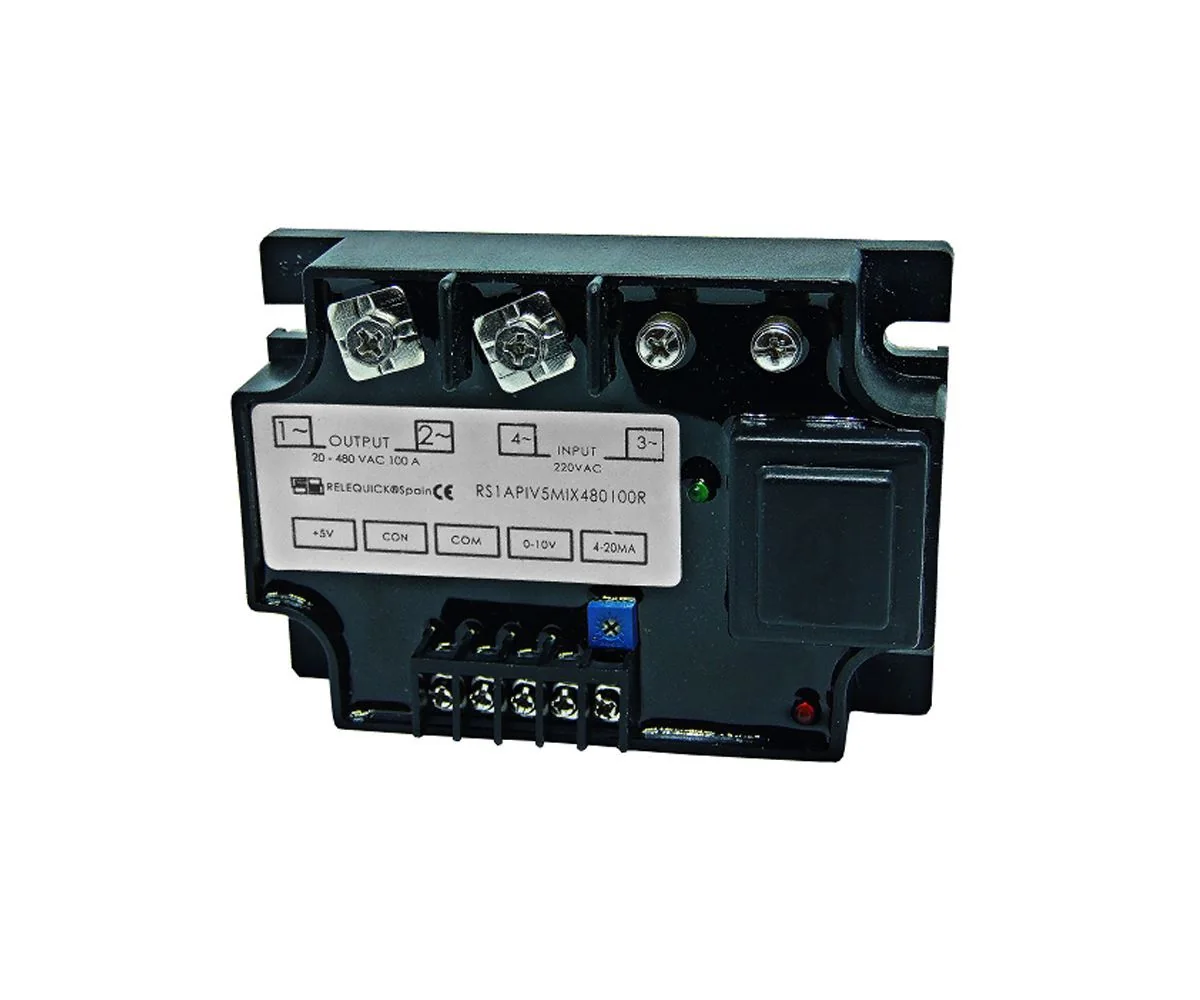

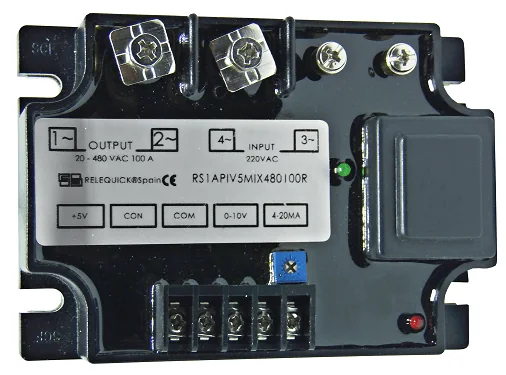

Voltage regulator (dimmer)
60–400 A · 20–480 VAC
Not sure which model to choose? Write to us.Features
- Dimmer regulator by phase start cut3
- control ranges: 0 - 5 Vdc, 0 - 10 Vdc, 4 - 20 mA
- Maximum current according to model: 60, 80, 100, 200, 300, 400A.
- Operating range output: 20 - 480 VAC.
- Frequency range: 50 - 60 Hz.
- Maximum non-repetitive voltage peak: 850 Vp.
- IP20
Attached documents
- Download file:
Technical specifications
| Control voltage range | Current control range | |
| Input range | 0-5 VDC, 0- 0 VDC | 4 - 20 mA |
| Max. load current | 25, 40, 60, 80, 100, 200, 300, 400 A (AC51 @ Ta = 25 °C) 5, 15, 18, 20, 40, 60, 80 A (AC53a @ Ta = 25 °C) |
|---|---|
| Load voltage range | 20-480 VAC |
