Solid state relays & heat sinks

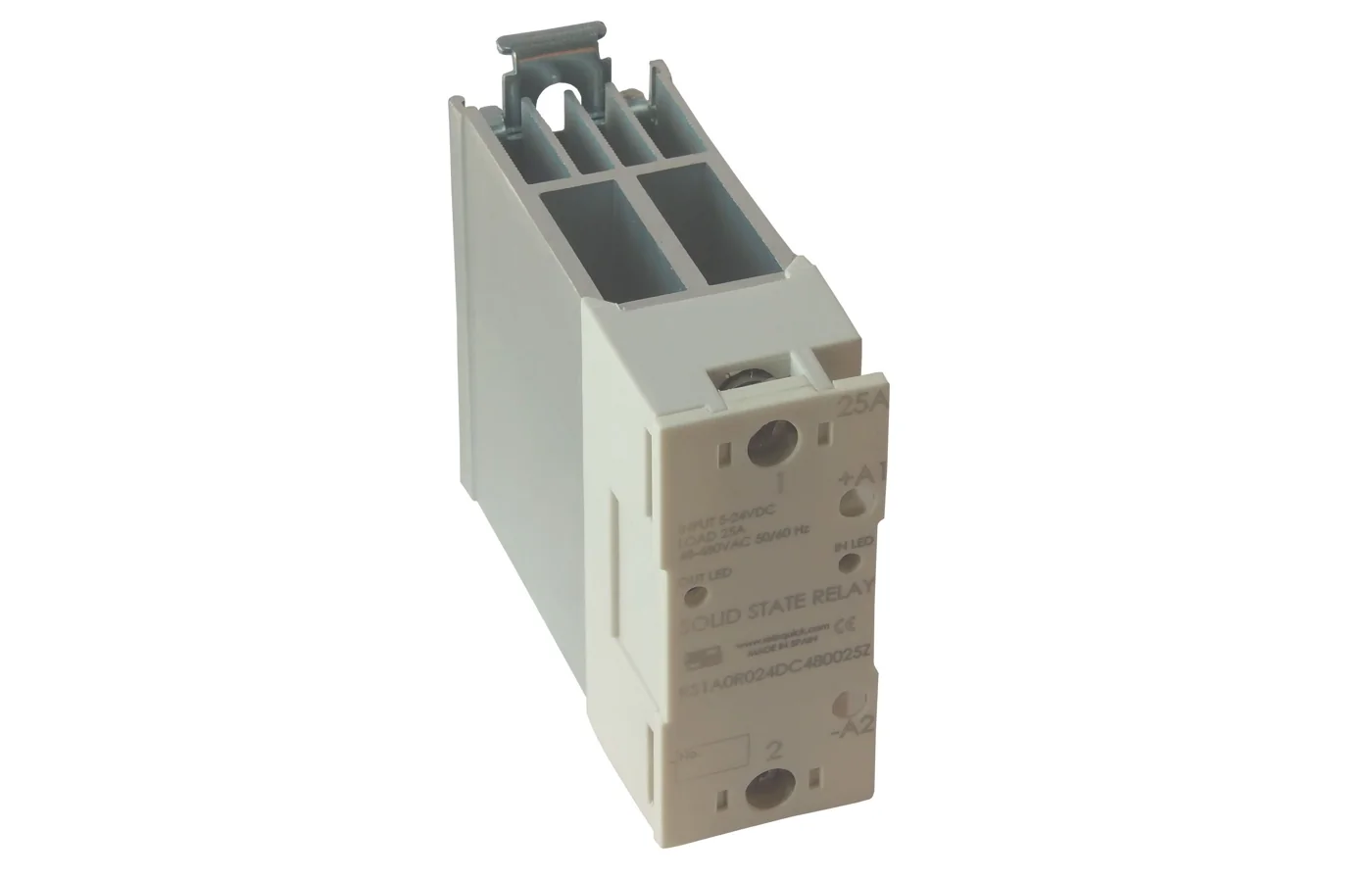

DIN rail relay

25 and 60 A · 48–480 VAC

Not sure which model to choose? Write to us.

Features

• AC load.
• Zero crossing.
• Input range: 5 - 24 VDC.
• Load voltage range: 48 - 480 VAC.
• Max. load current: 25, 60 A.
• Operating frequency range: 50 - 60 Hz.
• Non-repetitive peak voltage: 1.000 Vp.
• 2 input/output LED indicator.
• Protective cover available for greater safety (IP 20).

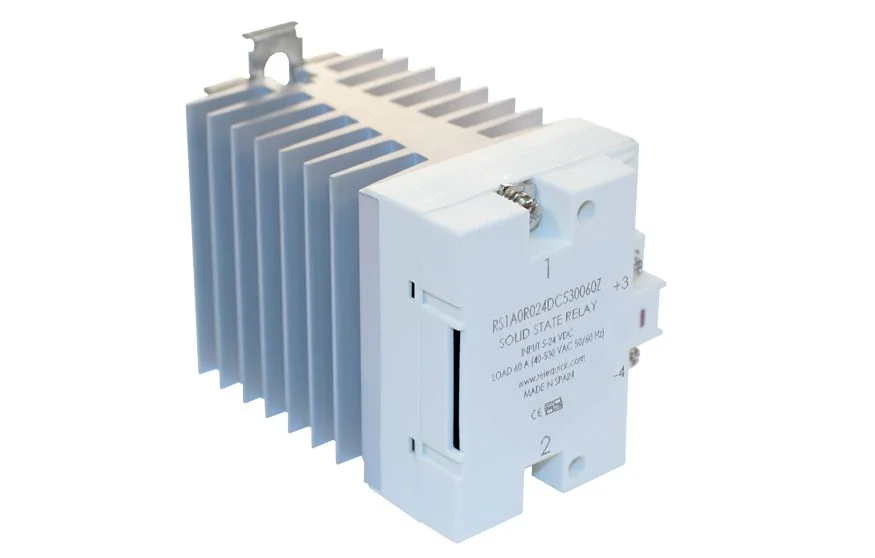

• Heat sink included.
• 35 mm rail mount.
