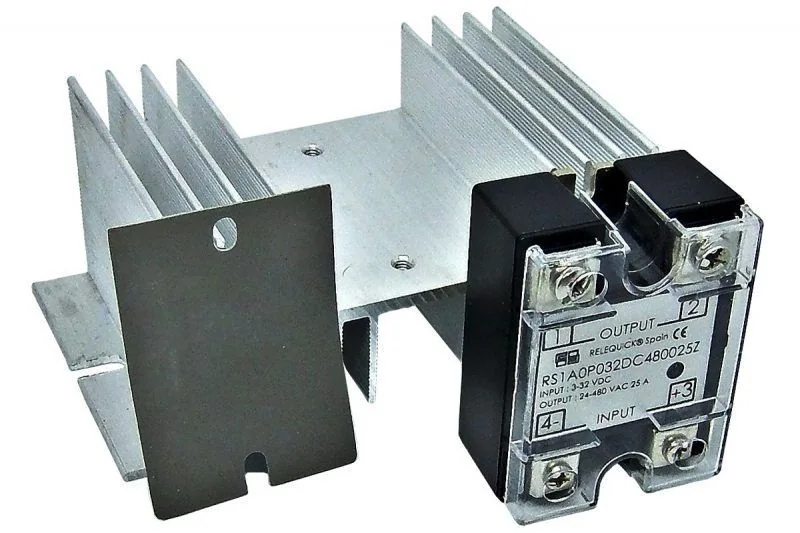

Solid state relays & heat sinks

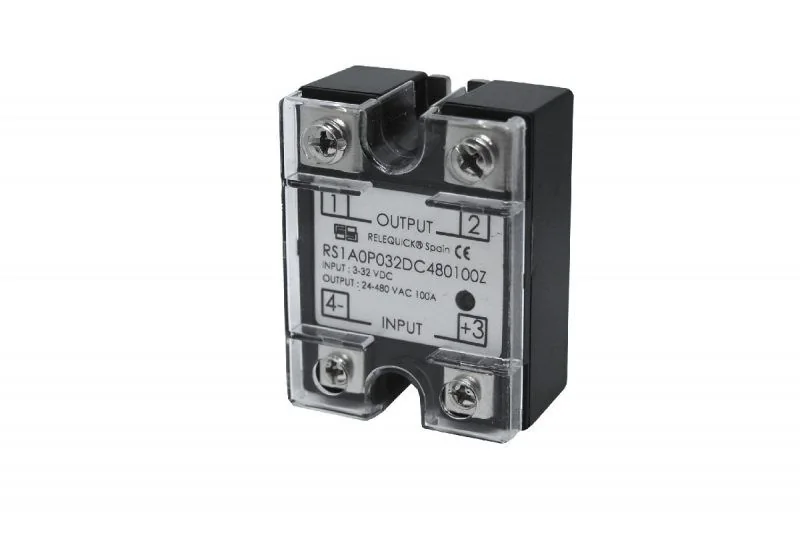

Zero-crossing AC relay
25–100 A · 40–480 VAC
Not sure which model to choose? Write to us.Description
The relay of solid monophase state of switching to zero voltage step is one of our products most appreciated for its electrical and mechanical characteristics.
It is designed for continuous and industrial use in a way that can withstand the most demanding jobs requested at industrial relays, "solid state relay continuous operation" or "solid state relay connection and disconnection millions of times"
Features
- AC load (50 - 60 Hz).
- Two input ranges: 3 - 32 VDC and 90 - 280 VAC.
- Load voltage range: 40 - 480 VAC.
- Max. load current (AC1 at 25 °C): 25, 60, 80, 100 A.
- Non-repetitive peak voltage: 930 Vp.
- Input LED indicator.
- Protective cover available for greater safety (IP 20).
Attached documents
- Download file:
Technical specifications
| Control voltage range | 3 - 32 VDC | 90 - 280 VAC |
|---|
| Max. load current | 25, 60, 80, 100 A (AC51 @ Ta = 25 °C) 5, 15, 18, 20 A (AC53a @ Ta = 25 °C) |
|---|---|
| Load voltage range | 40 - 480 VAC |
