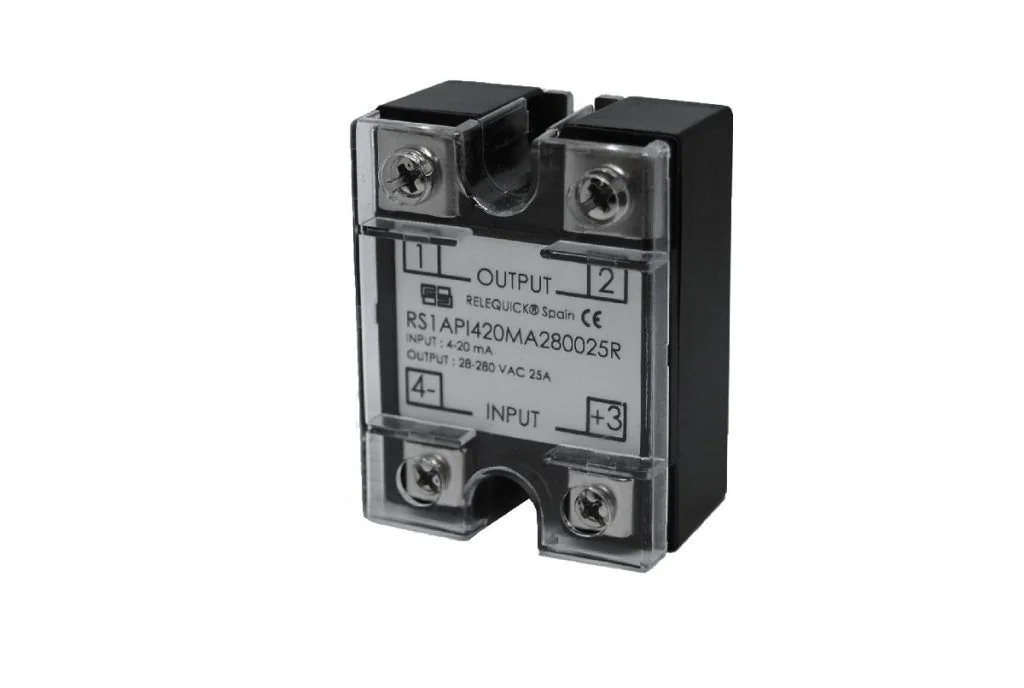

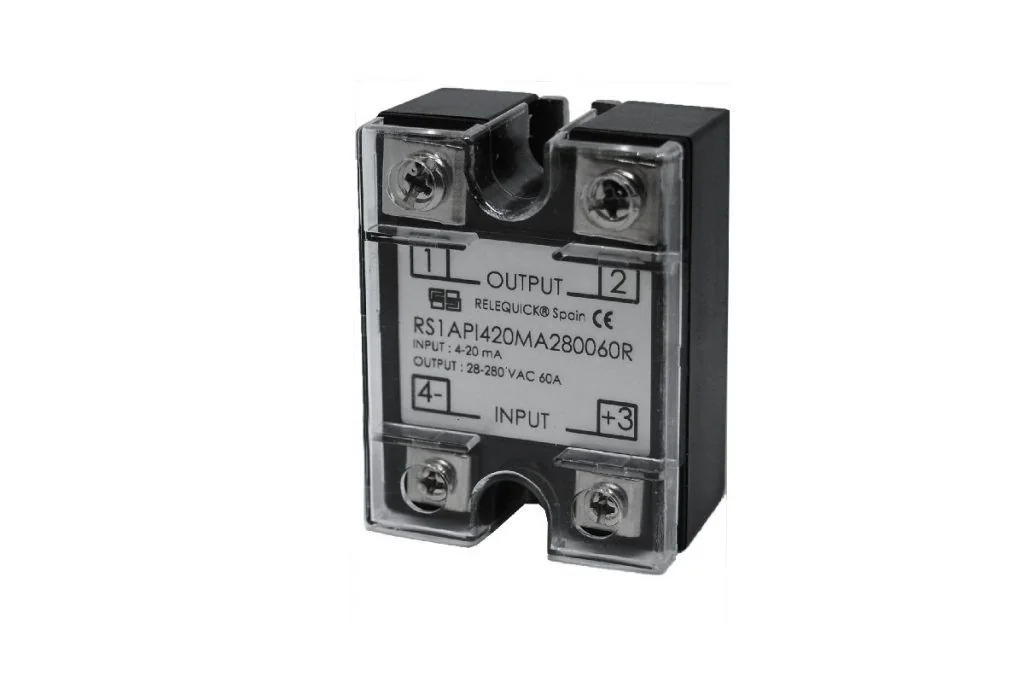

Phase angle control AC relay

25–100 A · 0–380 VAC

Not sure which model to choose? Write to us.

Features

• AC load (50 - 60 Hz).
• Analog switching.
• Two input ranges: 4 - 20 mA and 2 - 10 VDC.
• Load voltage range: 0 - 380 VAC.
• Max. load current: 25, 40, 60, 80, 100 A.
• Non-repetitive peak voltage: 850 Vp.
• Protective cover available for greater safety (IP 20).
