Solid state relays & heat sinks

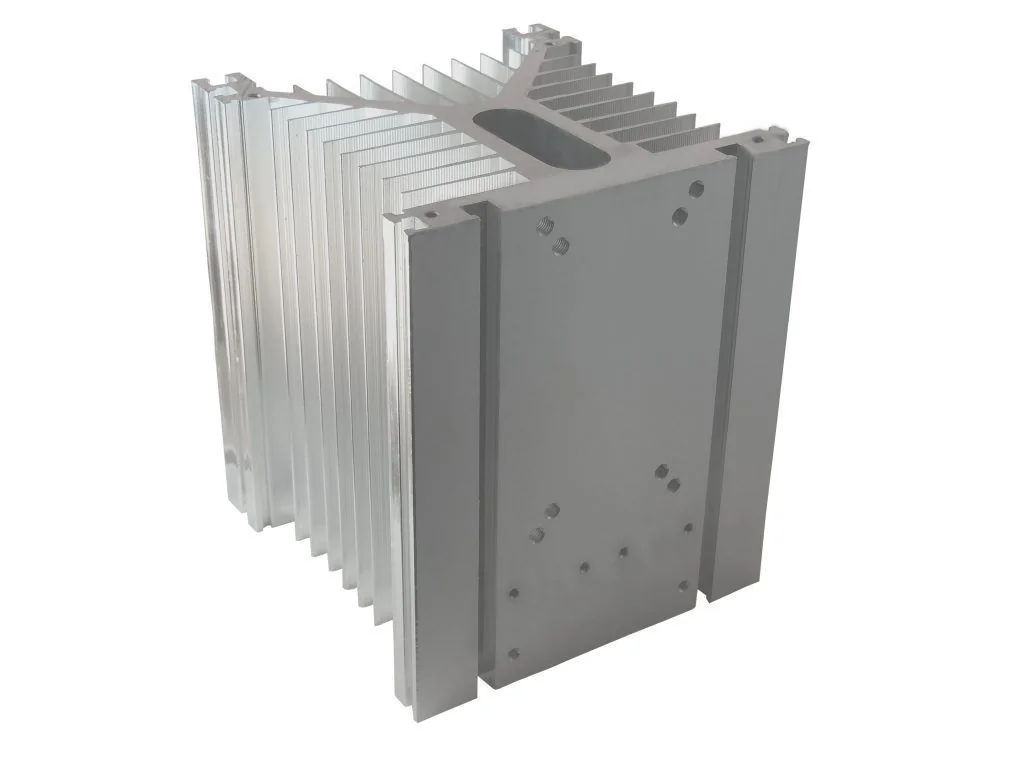

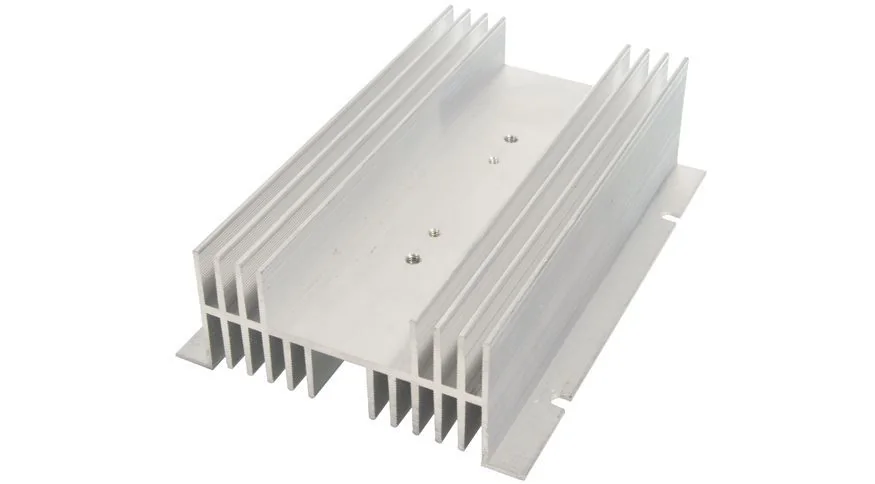

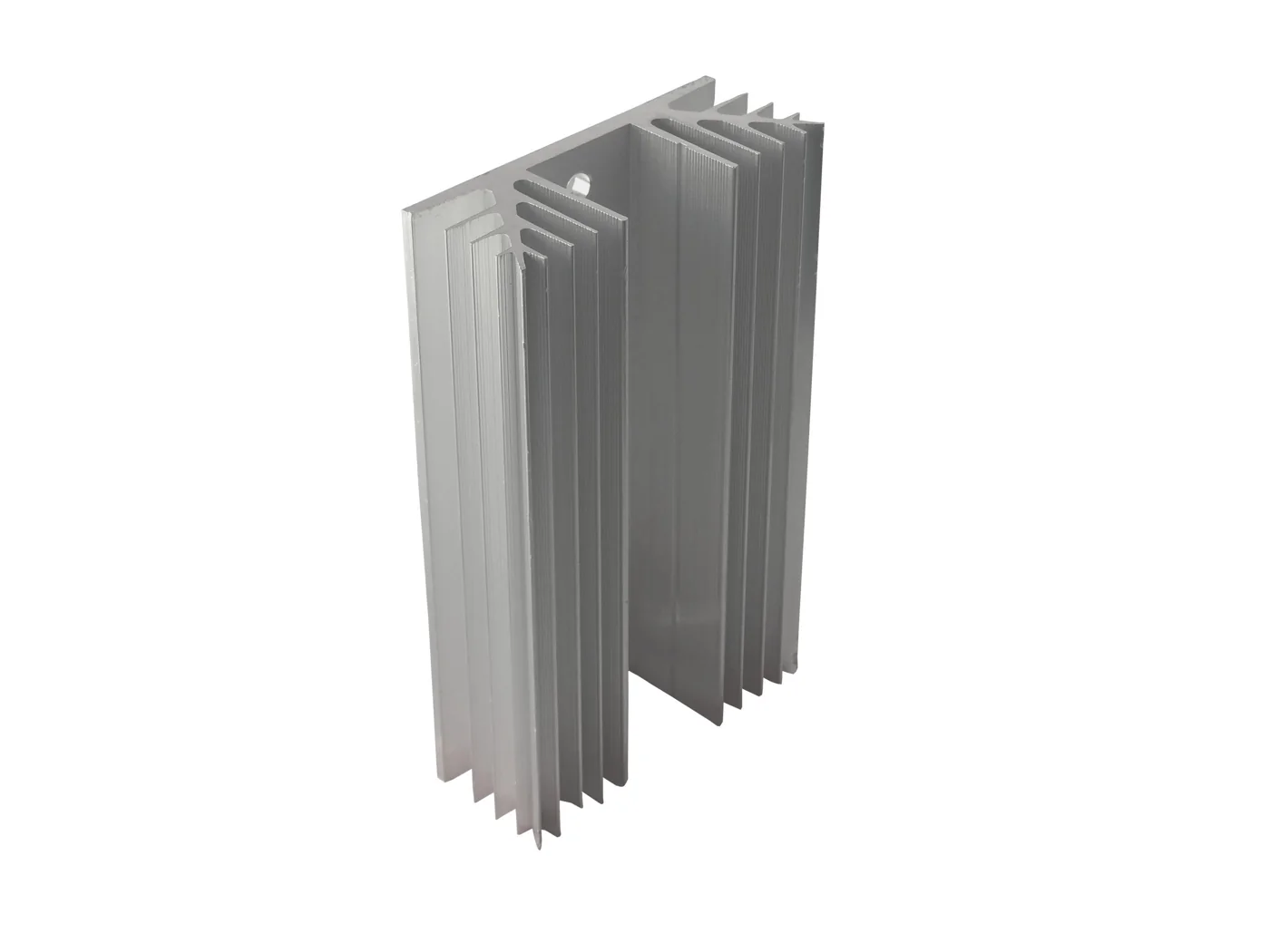

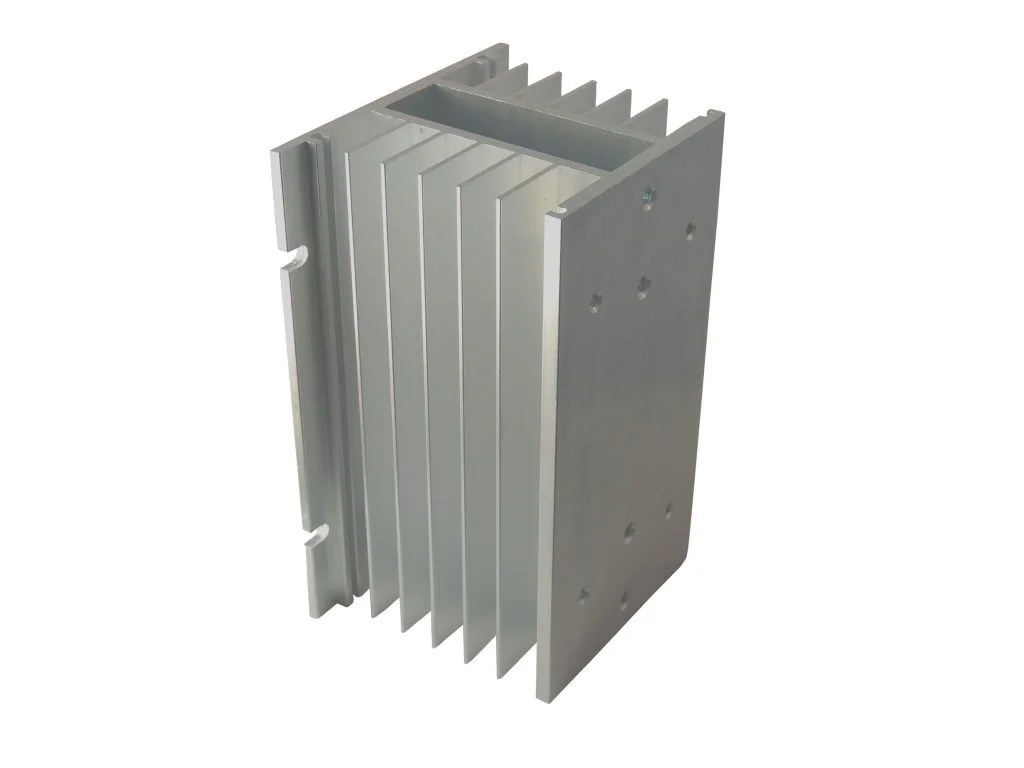

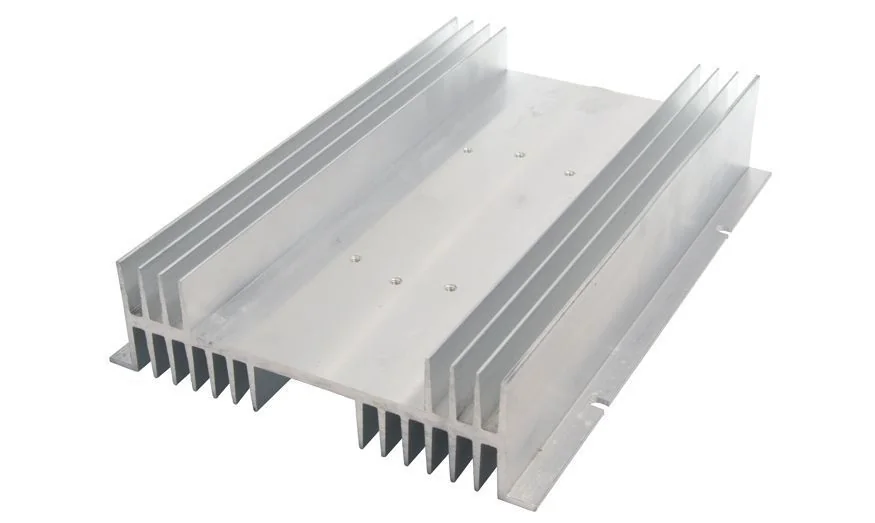

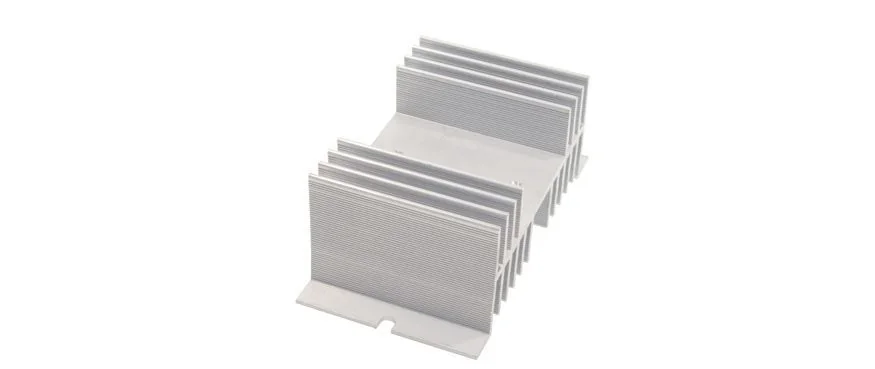

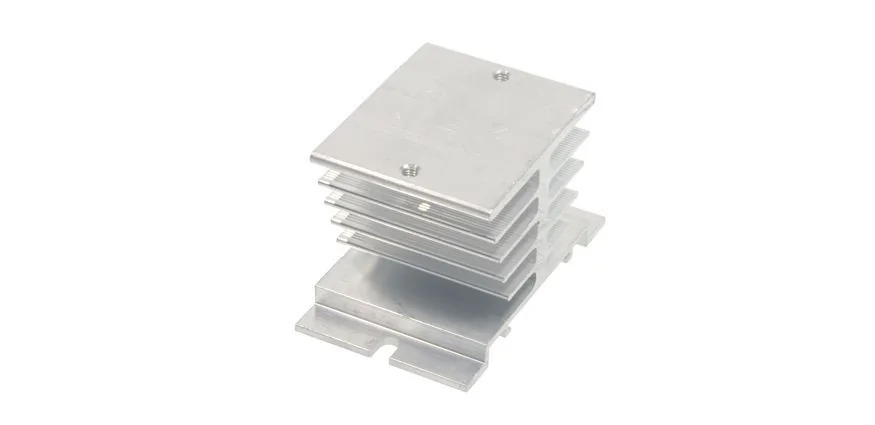

Heat sink
Panel or DIN rail
Not sure which model to choose? Write to us.Features

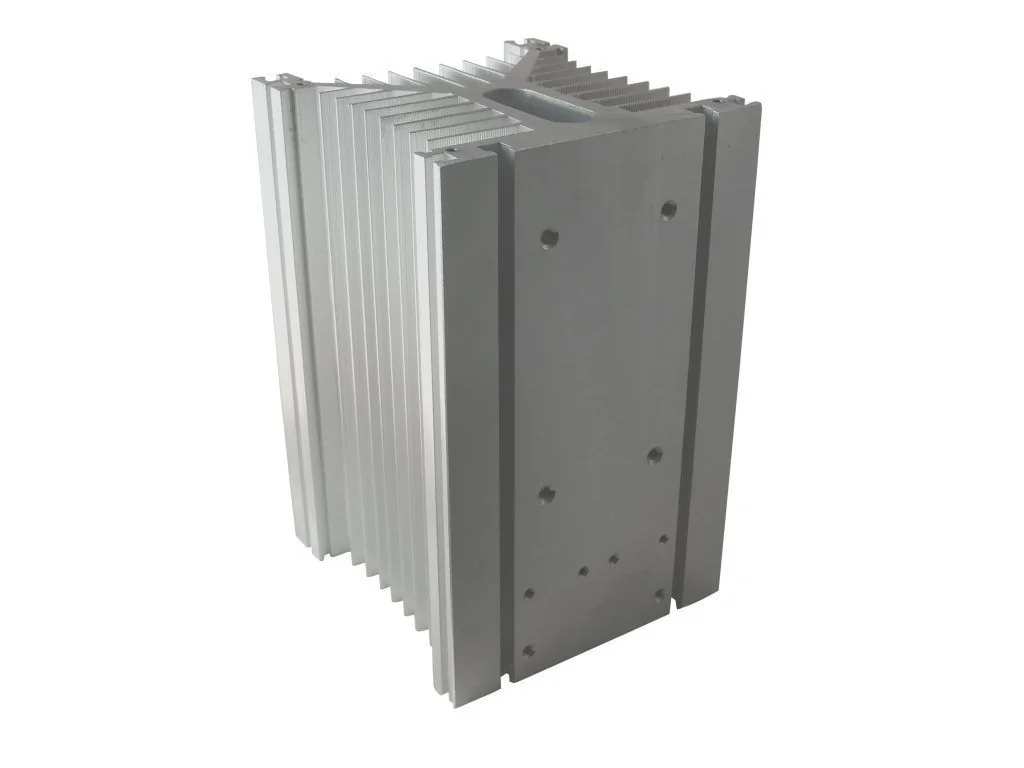

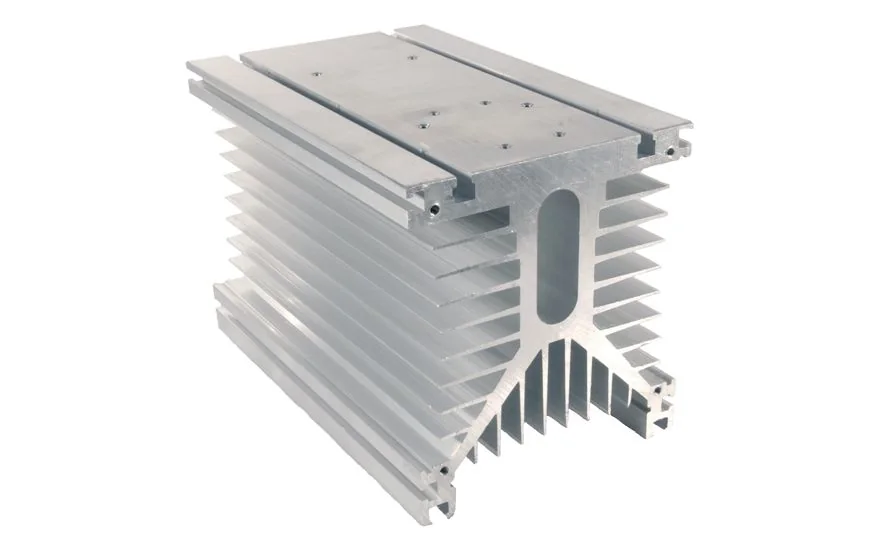

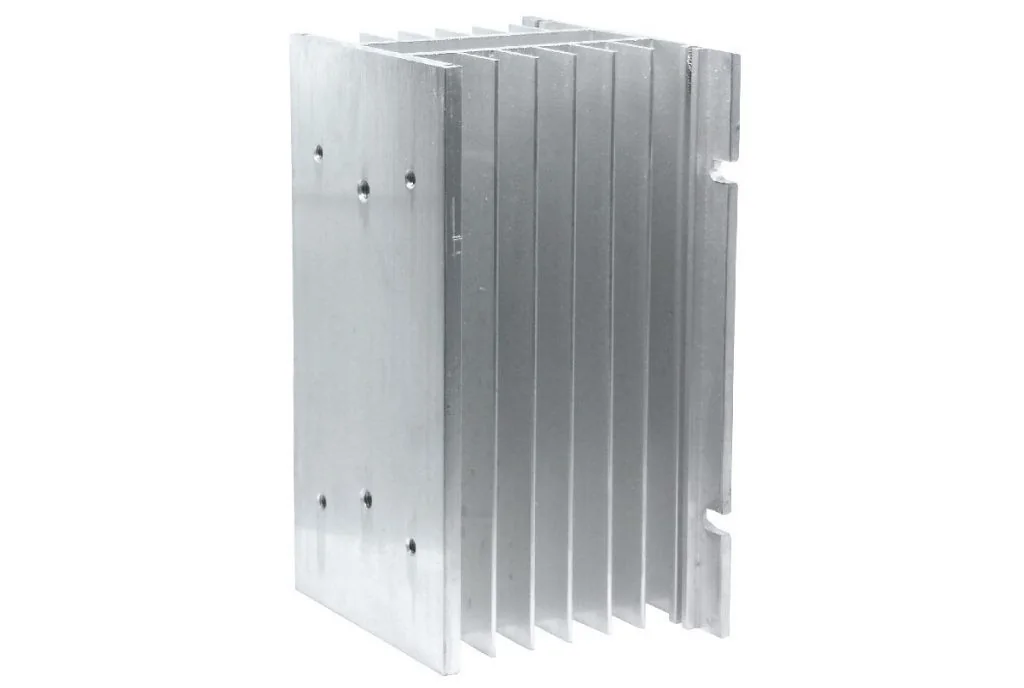

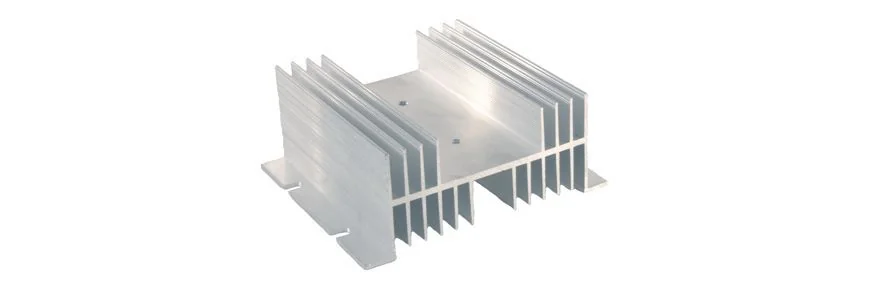

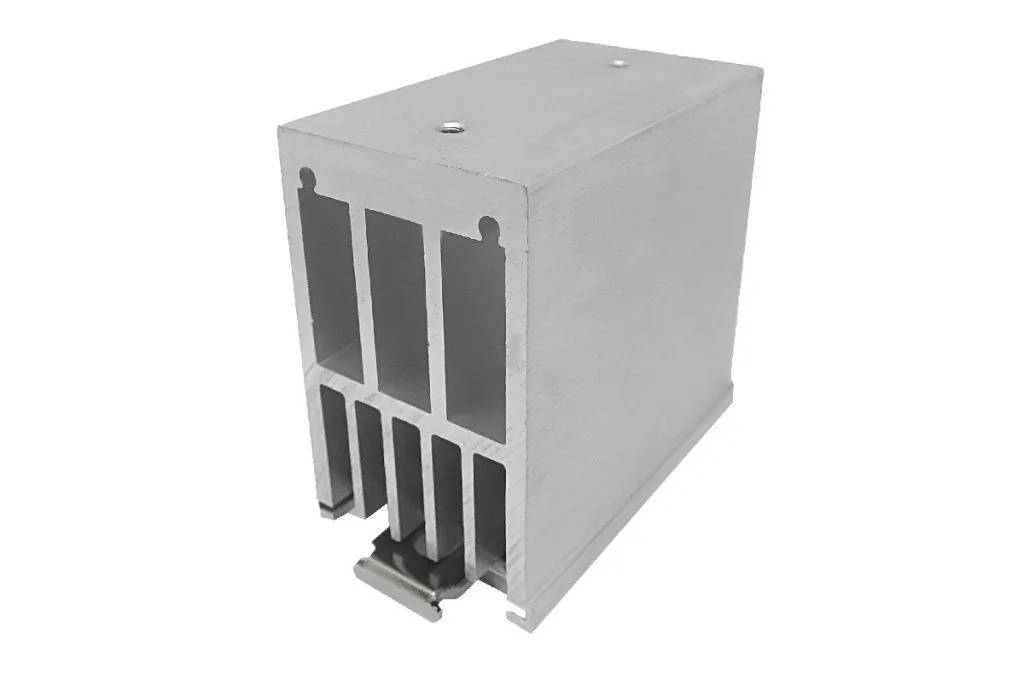

- Aluminum heat sinks ensure the proper operation and long term reliability of solid state relays by maintaining a safe operating temperature.
- All SSR must have a heatsink attached if current is 10A or above. Without a heatsink to release heat dissipated, it will burn out.
- Different heatsinks for three-phase and single-phase relays.

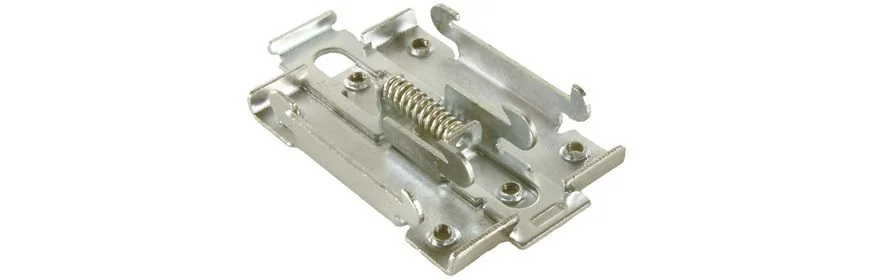

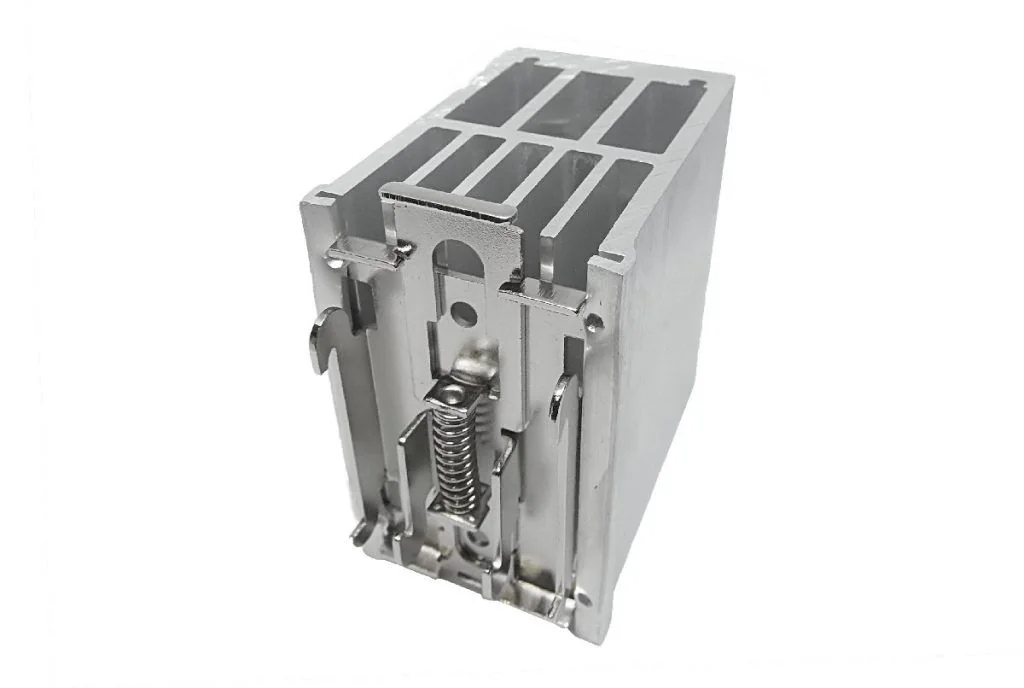

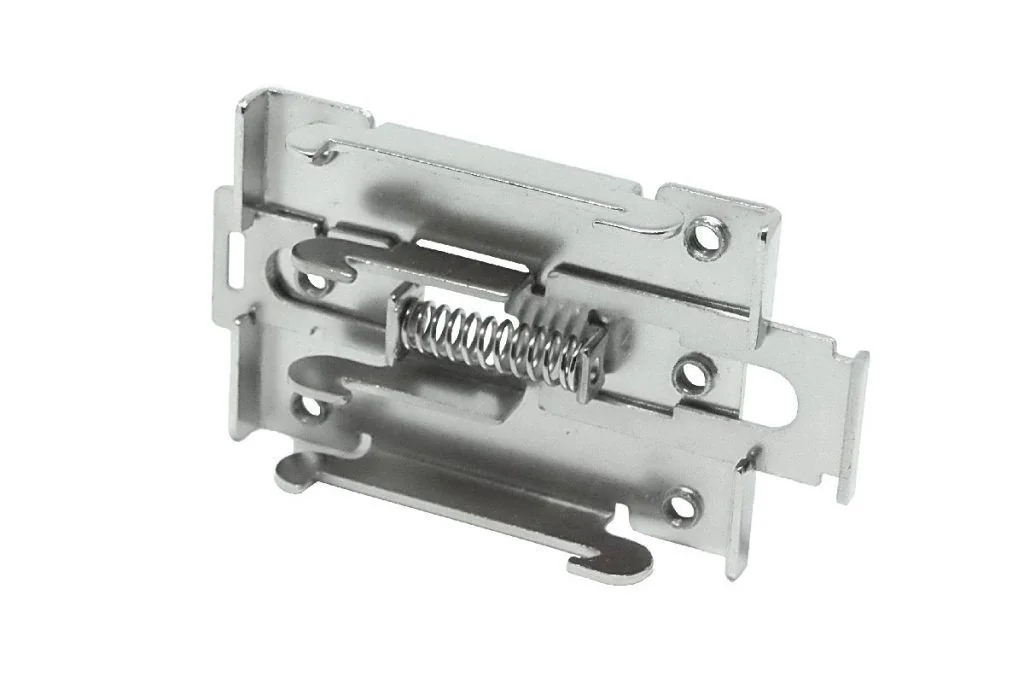

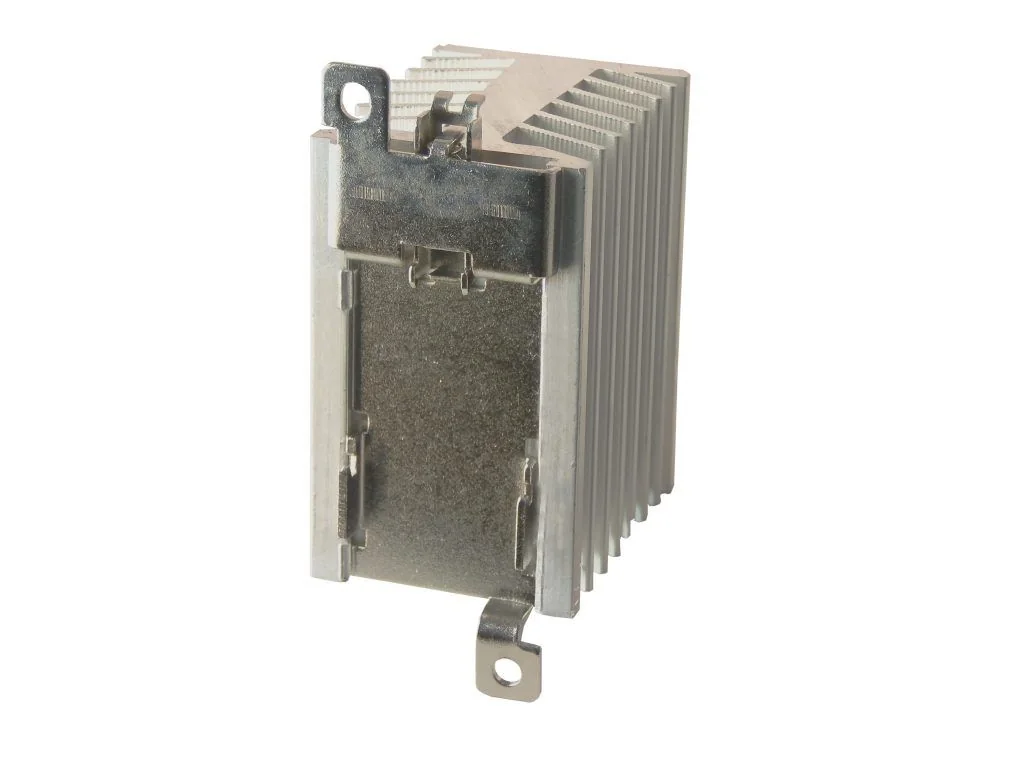

- 35 mm DIN rail mount available.
Attached documents
- Download file:
Technical specifications
| Reference | Max. current | Type of SSR | Size (L x A x A) |
|---|---|---|---|
| RSH-035 | <35 A | Three-phase | 150 x 90 x 35 mm |
| RSH-036 | <50 A | Three-phase | 150 x 100 x 80 mm |
| RSH-037 | <55 A | Three-phase | 260 x 180 x 50 mm |
| RSH-038 | <80 A | Three-phase and single-phase | 150 x 125 x 135 mm |
| RSH-039 | <200 A | Three-phase and single-phase | 200 x 125 x 135 mm |
| RSH-059 | <20 A | Single-phase | 75 x 72 x 44 mm |
| RSH-060 | <25 A | Single-phase | 80 x 50 x 50 mm |
| RSH-061 | <40 A | Single-phase | 125 x 70 x 50 mm |
| RSH-062 | <45 A | Monofásicos | 125 x 110 x 50 mm |
| RSH-063 | <50 A | Single-phase | 180 x 125 x 48 |
| RSH-MR | <5 A | Single-phase | 8 x 4,4 x 1,3 |
