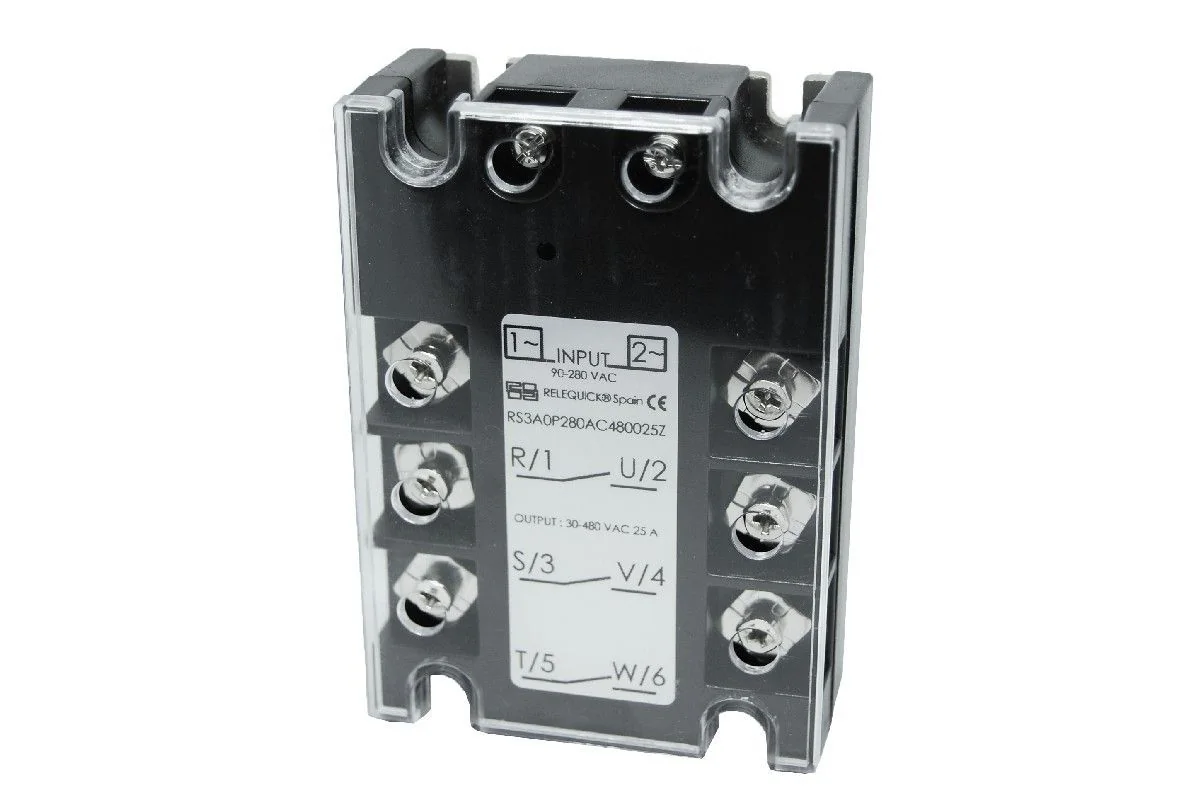

Three phase solid state relay

25–120 A · 40–440 VAC

Not sure which model to choose? Write to us.

Features

• AC load (50- 60 Hz).
• Zero crossing detection.
• Two input ranges: 3 - 32 VDC and 90 - 250 VAC.
• Load voltage range: 40 - 440 VAC.
• Max. load current (AC1 at 25 °C): 25, 60, 80, 100, 120 A.
• Non-repetitive peak voltage: 930 Vp.
• Input LED indicator.
• Protective cover available for greater safety (IP 20).

Attached documents

• Download file:
