Three phase voltage regulator

10–100 A · 20–380 VAC

Not sure which model to choose? Write to us.

Features

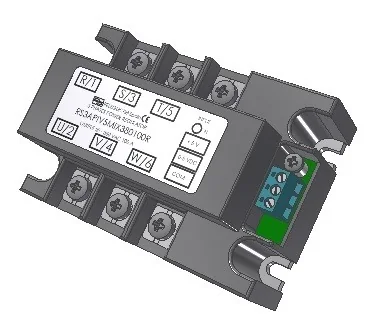

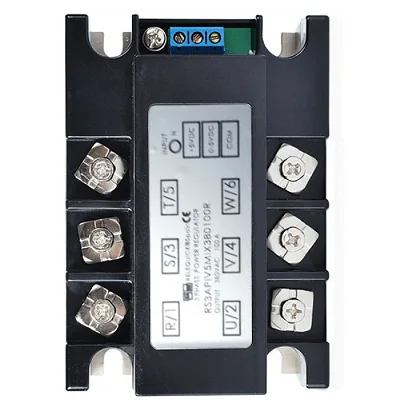

• Three-Phase Solid State Voltage Regulator

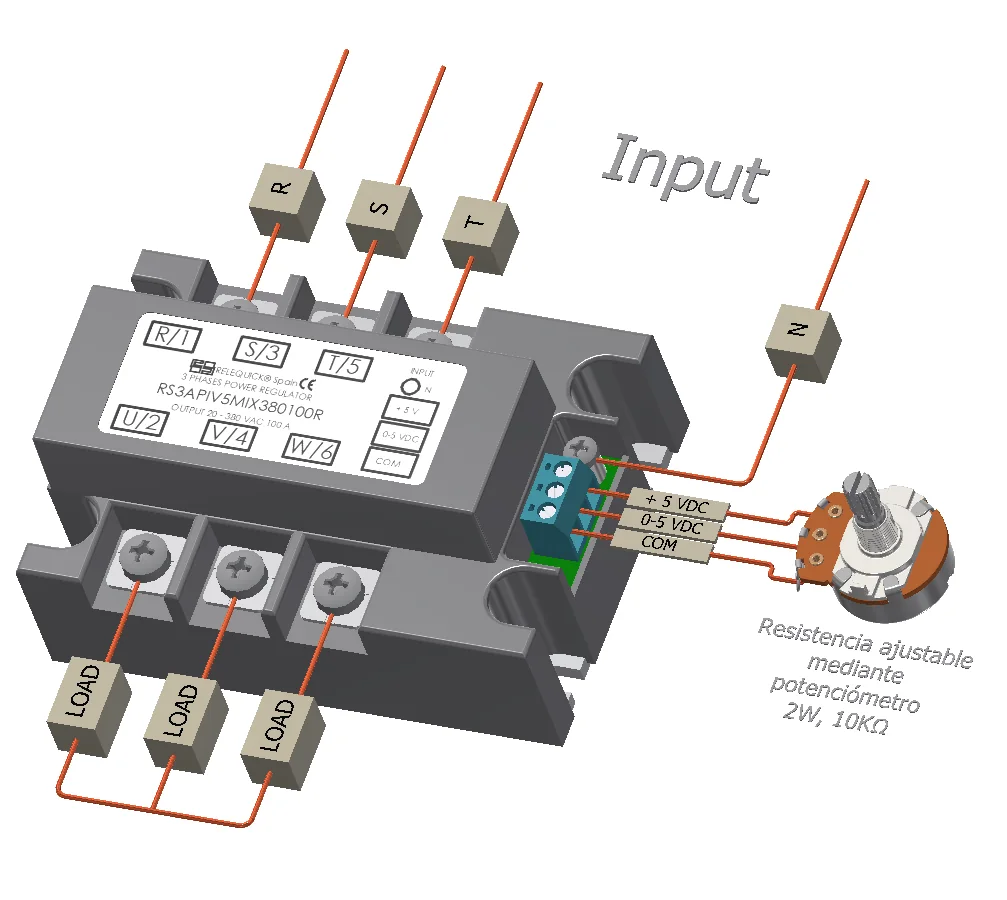

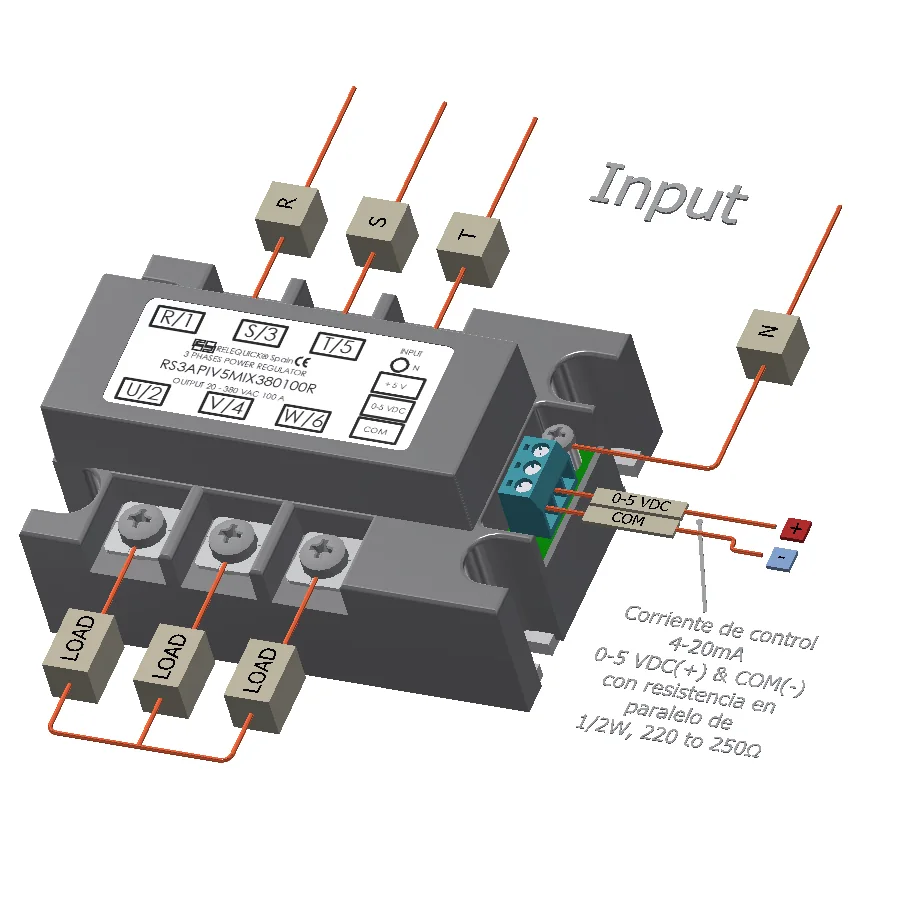

• 3 control ranges: 0 - 5 Vdc, 4 - 20 mA and potentiometer
• Maximum current according to model: 10, 25, 40, 60, 80, 100A.
• Operating range: 20 - 380 VAC.
• Frequency range: 50 - 60 Hz.
• Maximum non-repetitive peak voltage: 600 Vp.
• IP pollution (IP 20).

Attached documents

• Download file:
