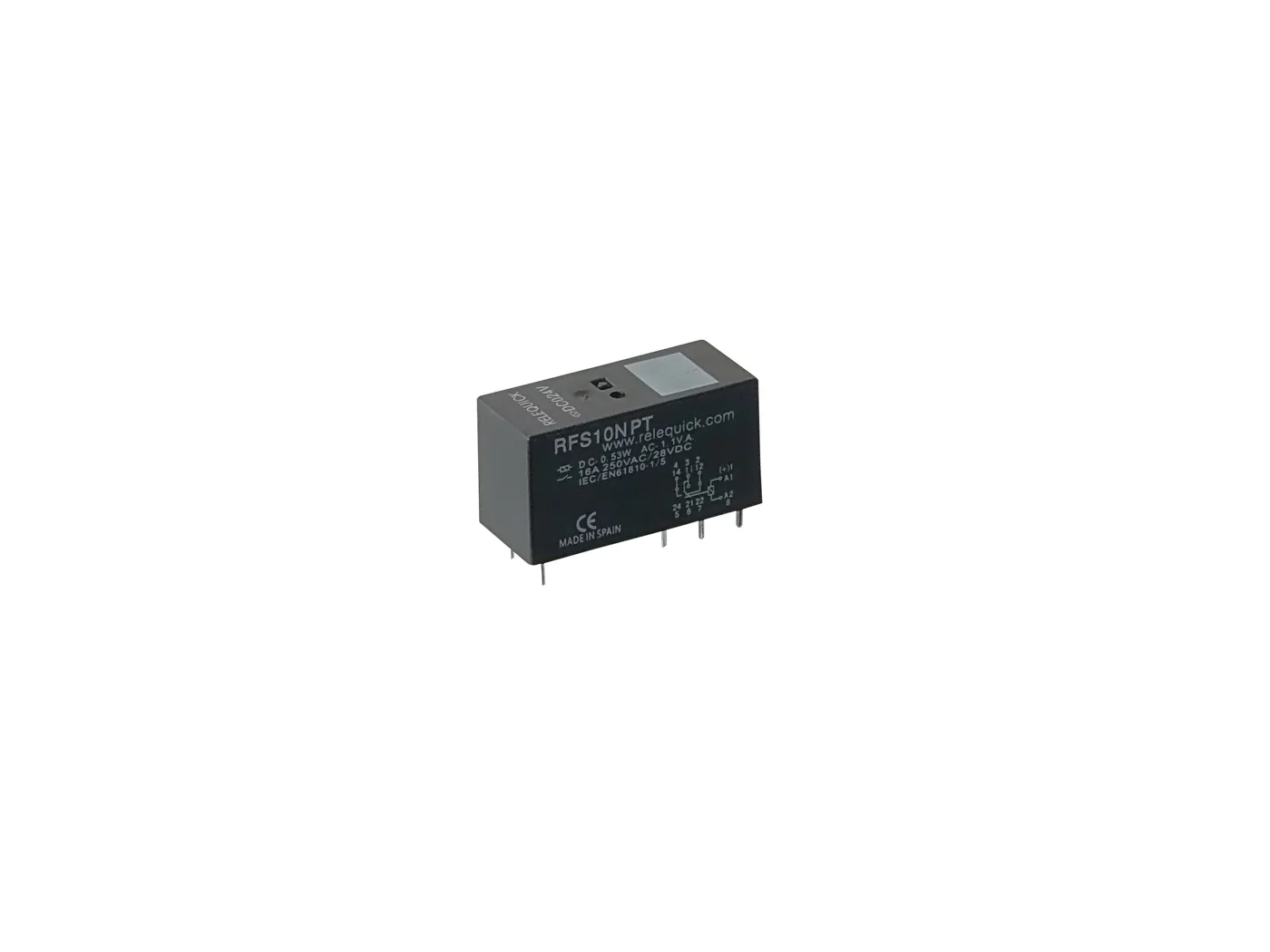

RF-PT series relay
For PCB · up to 16 A
Not sure which model to choose? Write to us.Features
- Interface relay for general applications.
- Available in 1 & 2 change-over contacts with max. current 16 A (250 VAC1 / 30 VDC1) & 8 A (250 VAC1 / 30 VDC1).
- Nominal power 0.4W (DC).
- Insulation: IEC61810-1 - 2.5 KV/3.
- Pollution degree: 2.
- Base 187 (4.75 mm) terminales.
- Approvals: CE.
- Protection class: IP67.
- European approvals.
Attached documents
- Download file:
Technical specifications
| Rated voltage (VDC) | 6 | 12 | 24 | 48 | 115 | - |
|---|---|---|---|---|---|---|
| Rated power consumption AC 50Hz (VA) / DC (W) | - / 0,4 | |||||
| Rated voltage (VAC) | 6 | 12 | 24 | 48 | 120 | 230 |
| Contact configuration | 1C & 2C |
|---|---|
| Rated load | 1C: 2.500 VA / 300 W (SPDT) 2C: 1.250 VA / 150 W (DPDT) |
| Max. switching voltage | 250 VAC / 220 VDC |
| Max. breaking capacity | 110 VDC: 0,4 A 220 VDC: 0,15 - 0,20 A |
| Max. peak current | 16 A (1C) and 8 A (2C) AC1/DC1 |
| Contact resistance | ≤50 mΩ |
| Contact material | AgNi |
| Electrical life | ≥10⁵ cycles |
|---|---|
| Mechanical life | ≥10⁷ cycles |
| Operate/release time | ≤ 20 ms |
| Ambient temperature range | -40 °C ... +70 °C |
| Relative humidity | 35% - 85% |
| Atmospheric pressure | 86 - 106 KPa |
| Weight | 12 gr |
| Units per package | 100 |
