T series: relays & sockets

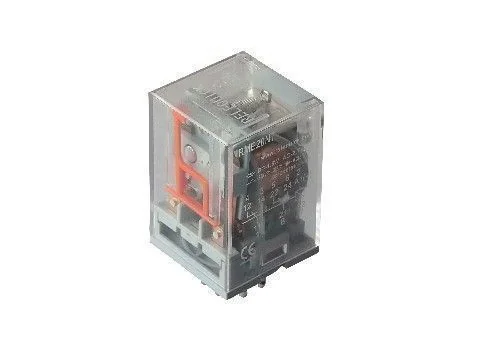

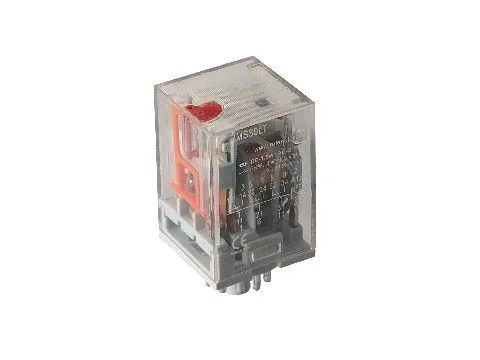

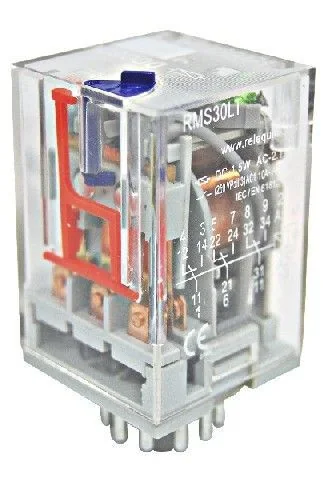

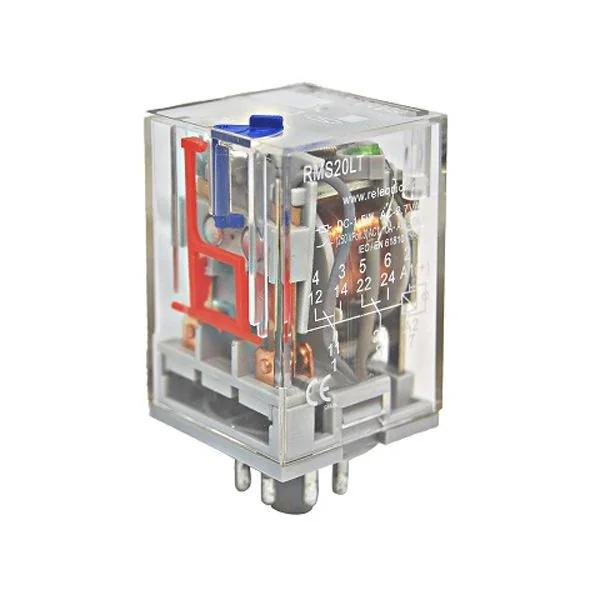

RM-T series relay
2 and 3 changeover contacts · 250 VAC
Not sure which model to choose? Write to us.Features
- Universal power relay for general applications.
- Available in 2 & 3 change-over contacts with max. current 10A - 250VAC1 / 28VDC1.
- Nominal power 1,5W (DC) & 2,7 VA (AC).
- Available with(out) led for AC/DC relays. Diode only available for DC.

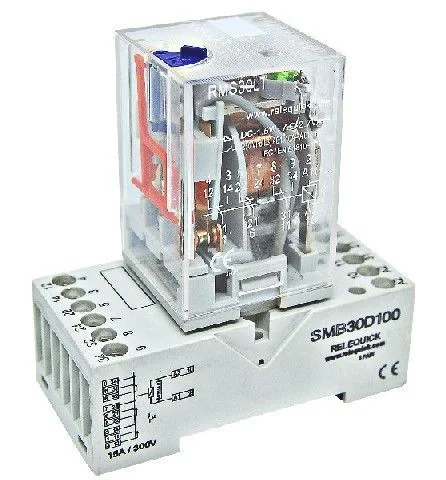

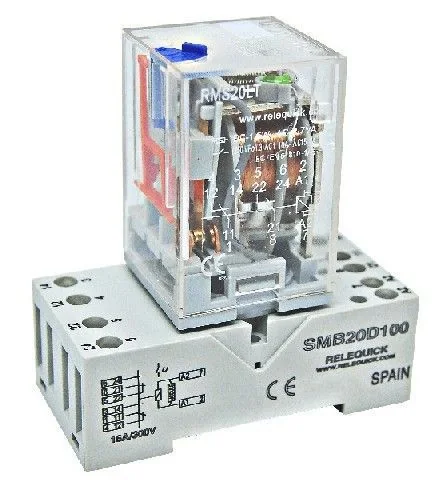

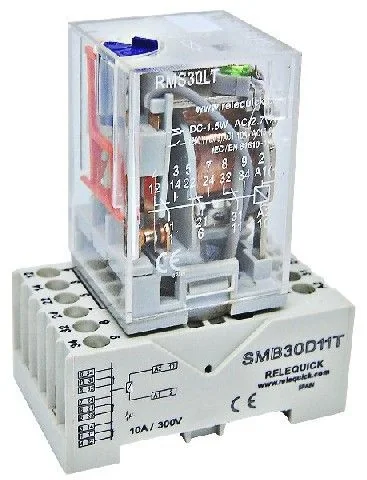

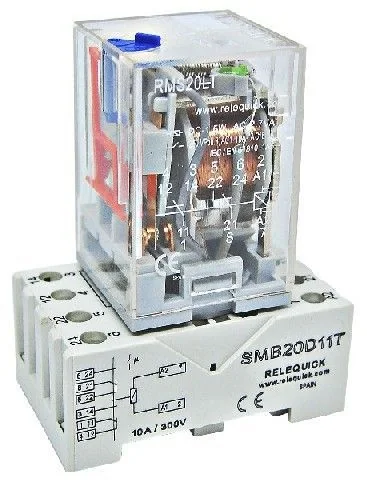

- Socket terminals, 8 pins plug-in for 2C and 11 pins plug-in for 3C.
- Insulation: IEC61810-1 - 2.5 KV/3.
- Pollution degree: 2.
- Protection class: IP40.
- Approvals: CE.
- European approval.
Attached documents
- Download file:
Technical specifications
| Rated voltage (VDC) | 6 | 12 | 24 | 48 | 60 | 115 | 220 |
|---|---|---|---|---|---|---|---|
| Rated power consumption AC 50Hz (VA) / DC (W) | 2.7 / 1.5 | ||||||
| Rated voltage (VAC) | 6 | 12 | 24 | 48 | 60 | 120 | 230 |
| Contact configuration | 2C & 3C |
|---|---|
| Rated load | 2500 VA / 280 W |
| Max. switching voltage | 250 VAC / 220 DC1 |
| Max. breaking capacity | 110 VDC: 0,4 A 220 VDC: 0,15 - 0,20 A |
| Max. peak current | 10 A (250 VAC1 / 28 VDC1) |
| Contact resistance | ≤50 mΩ |
| Contact material | AgNi |
| Electrical life | ≥10⁵ cycles |
|---|---|
| Mechanical life | ≥10⁷ cycles |
| Operate/release time | ≤30 ms |
| Ambient temperature range | -40 °C ... +65 °C |
| Relative humidity | 35% - 85% RH |
| Atmospheric pressure | 86 - 106 KPa |
| Weight | 80 gr |
| Units per package | 20 |
