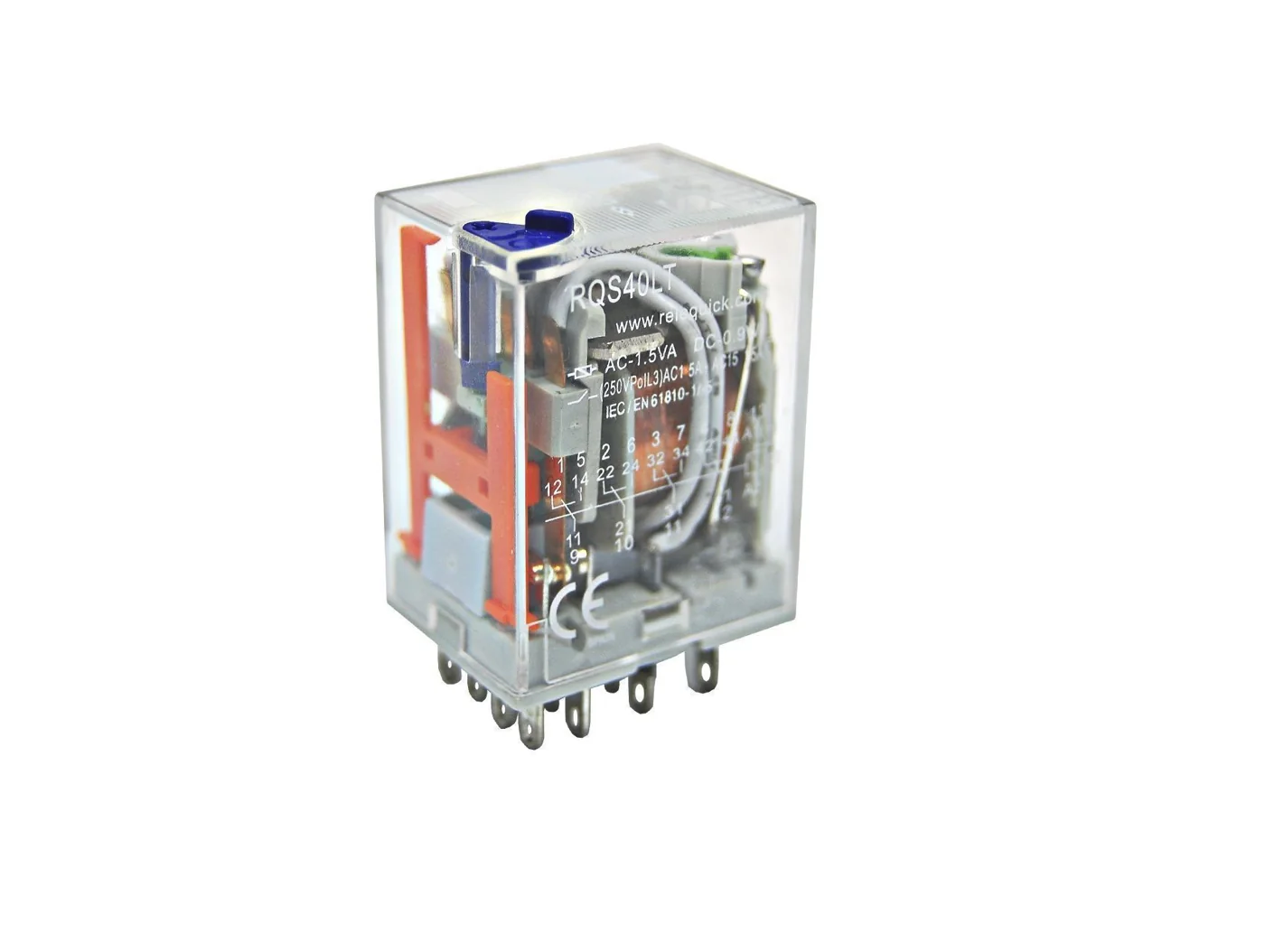

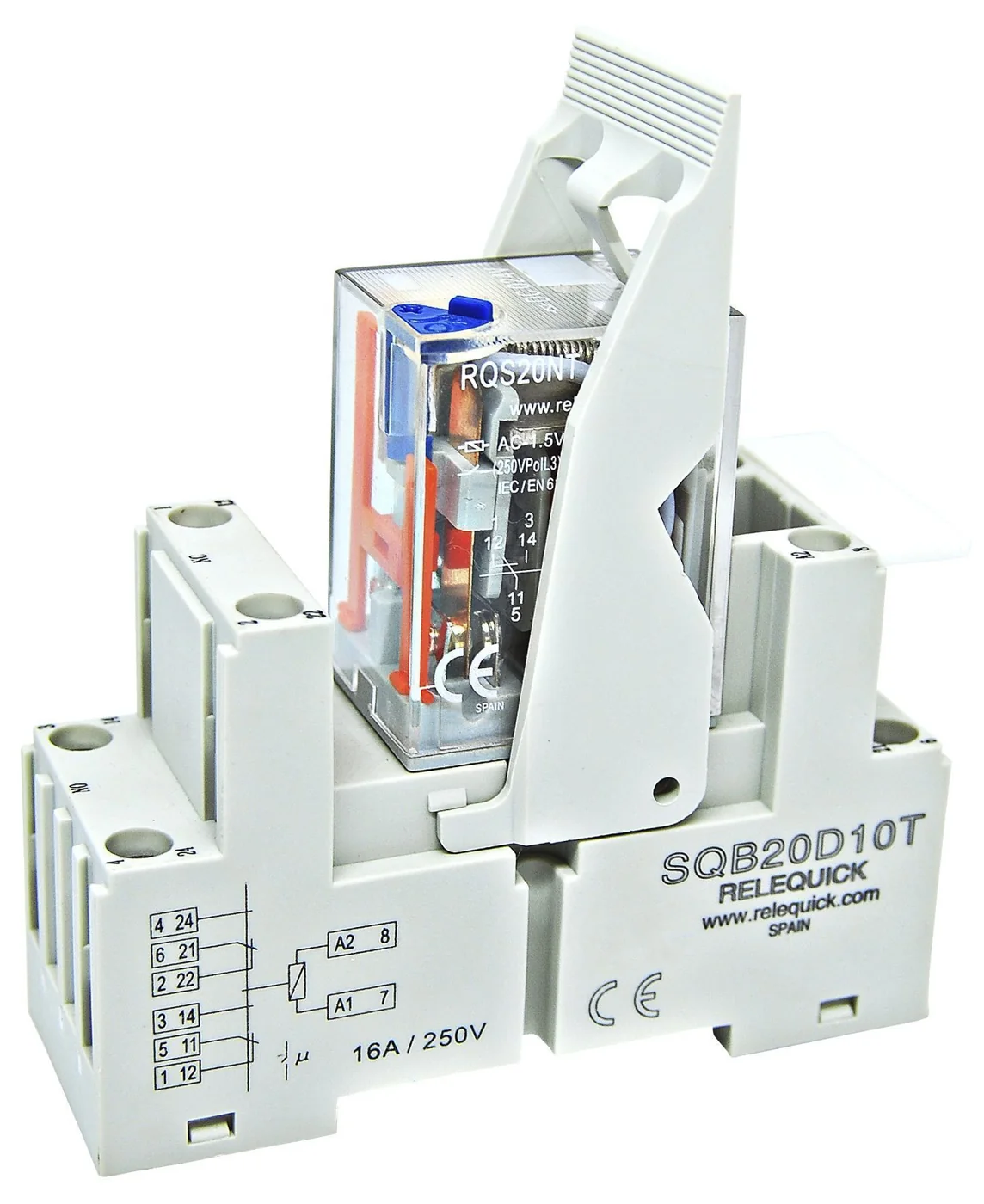

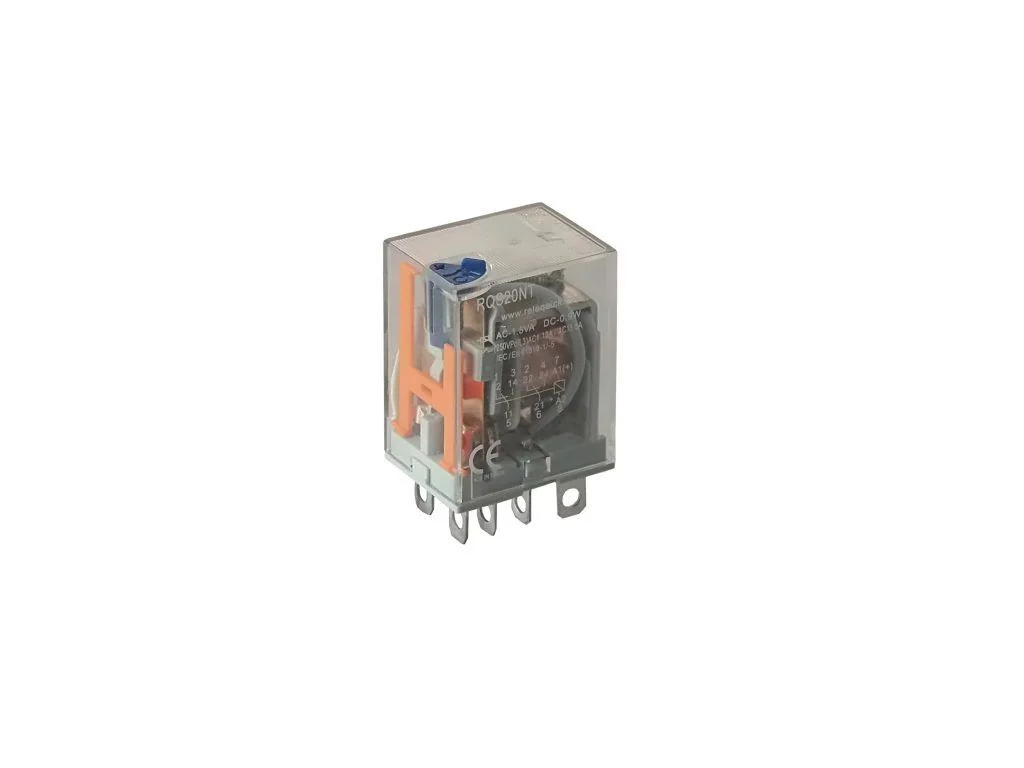

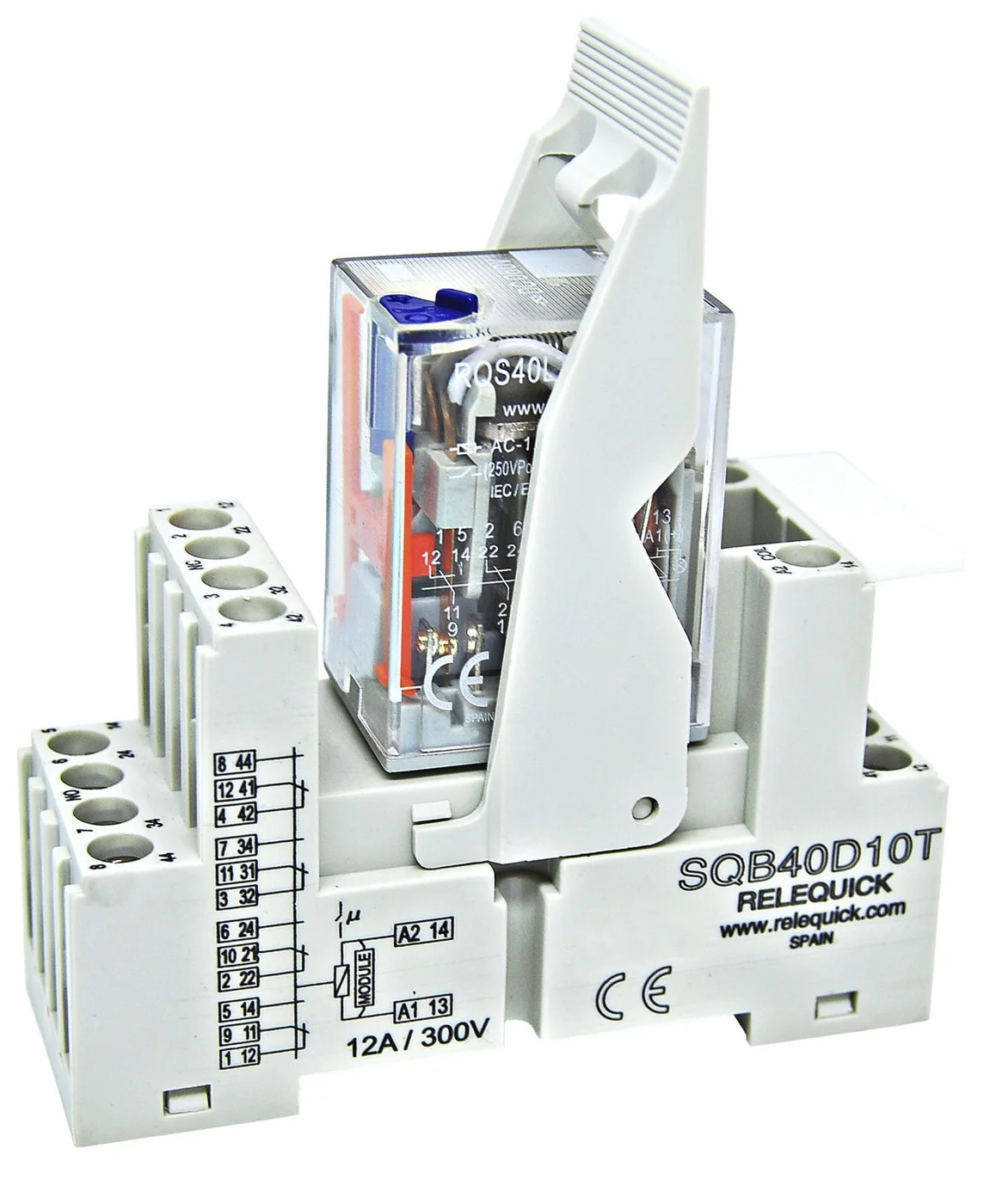

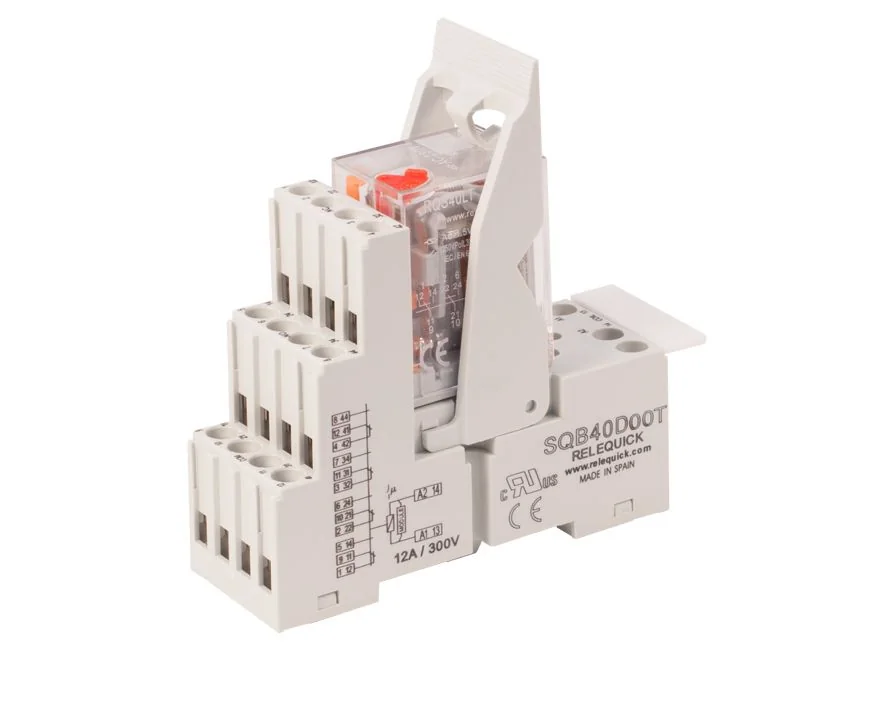

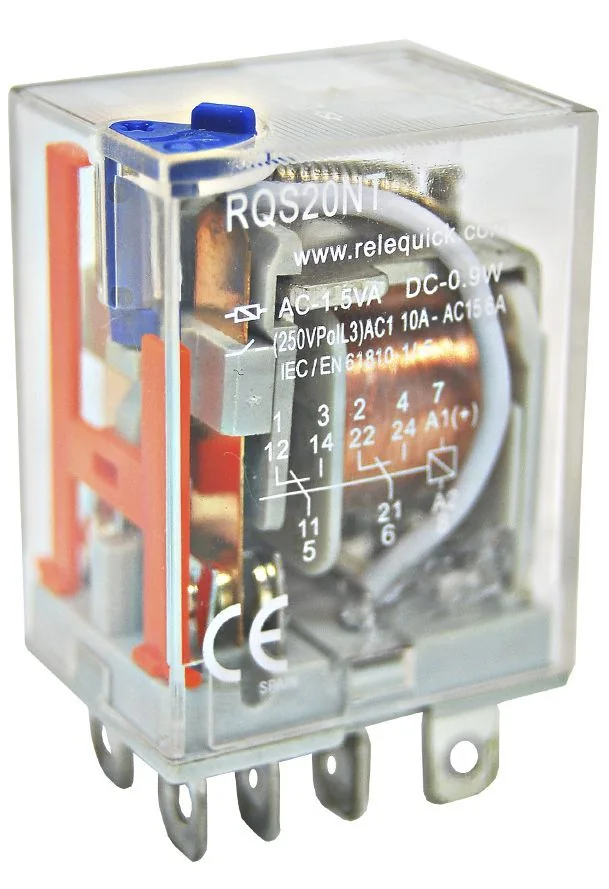

RQ-T series relay
1, 2 and 4 contacts · up to 16 A
Not sure which model to choose? Write to us.Features
- Universal power relay for general applications.
- Available in 1 & 2 change-over contacts with max. current 16 A - 250 VAC/30 VDC and 10 A - 250 VAC/30 VDC, 4 change-over contacts with max. current 5 A - 250 VAC1 / 30 VDC1.
- Nominal power 0.9 W (DC) & 1.5 VA (AC).
- Available with(out) led for AC/DC relays. Diode only available for DC.
- Insulation: IEC61810-1 - 2,5 KV/3.
- Pollution degree: 2.
- Terminales Plug-in de tipo faston para 1 y 2 contactos (4,8 mm). Versión de 4 contactos plug-in de tipo faston (2,6 mm).
- Approvals: CE.
- Protection class: IP40.
- European approval.
Attached documents
- Download file:
Technical specifications
| Rated voltage (VDC) | 6 | 12 | 24 | 48 | 60 | 115 | 220 |
|---|---|---|---|---|---|---|---|
| Rated power consumption AC 50Hz (VA) / DC (W) | 1.5 / 0.9 | ||||||
| Rated voltage (VAC) | 6 | 12 | 24 | 48 | 60 | 120 | 230 |
| Contact configuration | 1C, 2C & 4C |
|---|---|
| Rated load | 1C: 4.000 VA / 480 W (1SPDT) 2C: 2.500 VA / 300 W (DPDT) 4C: 1.250 VA / 150 W (4SPDT) |
| Max. switching voltage | 250 VAC / 220 DC1 |
| Max. breaking capacity | 110 VDC: 0,4 A 220 VDC: 0,15 - 0,20 A |
| Max. peak current | 16 A (1C), 10 A (2C), 5 A (3C) |
| Contact resistance | ≤50 mΩ |
| Contact material | Aleación de plata (AgNi) |
| Electrical life | ≥10⁵ cycles |
|---|---|
| Mechanical life | ≥10⁷ cycles |
| Operate/release time | ≤ 20 ms |
| Ambient temperature range | -40 °C ... +65 °C |
| Relative humidity | 35% - 85% RH |
| Atmospheric pressure | 86 - 106 KPa |
| Weight | 35 gr |
| Units per package | 20 |
