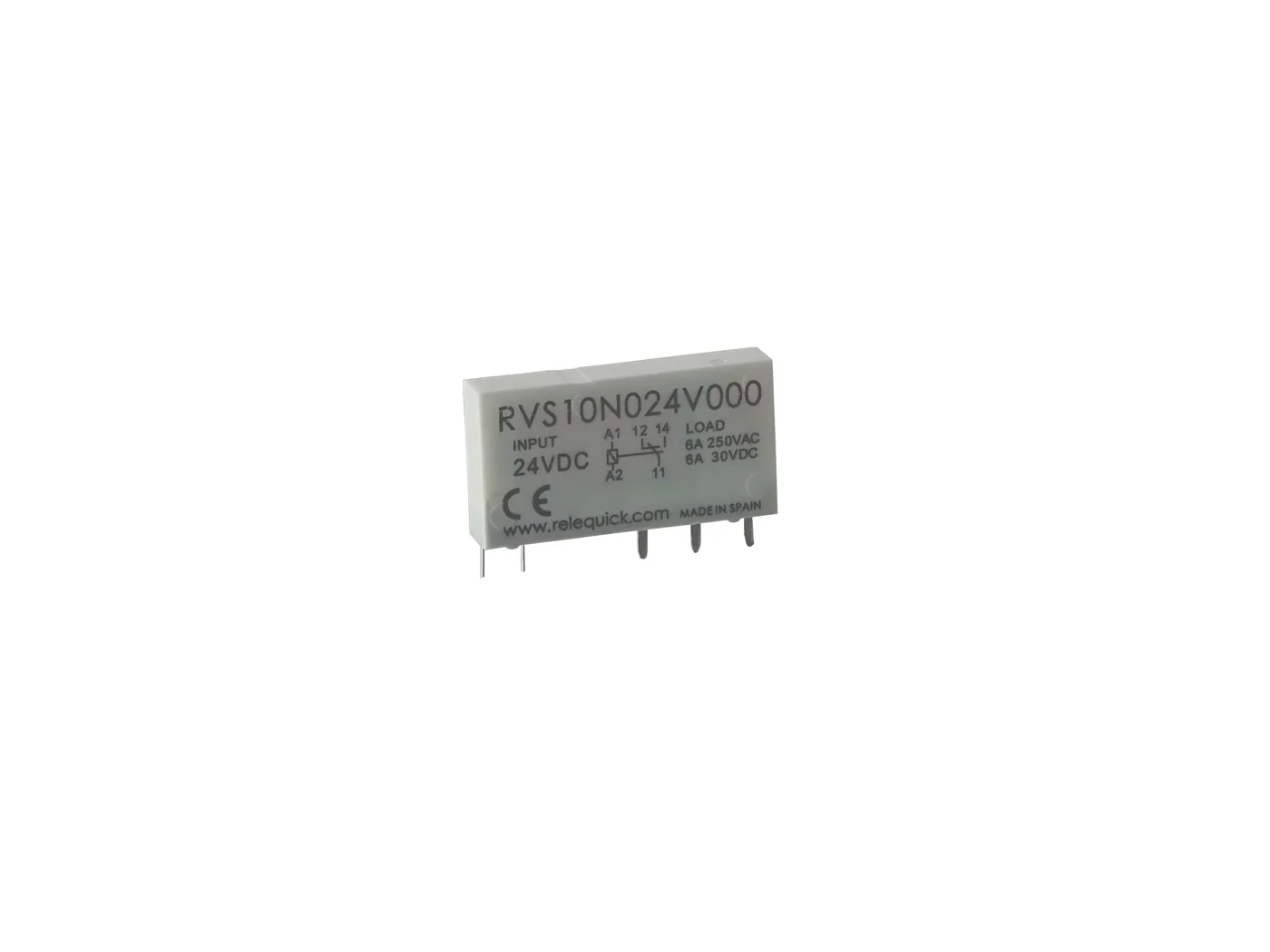

RVS hermetic relay
Miniature · 6 A · IP67
Not sure which model to choose? Write to us.Features
- Miniature relay for PCB or Slimline timer.
- Available in 1 change-over contact with max. current 6A - 250 VAC1 / 30 VDC1.
- Nominal power 5, 6, 9, 12, 18, 24 VDC (170 mW) / 48 VDC & 60 VDC (210 mW).
- Miniature, low power, high and sensibility.
- PCB terminals.
- Approvals: CE.
- Protection class (RVS): IP67.
- IEC 60664.
Technical specifications
| Rated voltage (VDC) | 5 | 6 | 9 | 12 | 18 | 24 | 48 | 60 |
|---|---|---|---|---|---|---|---|---|
| Rated power consumption DC (mW) | 170 | |||||||
| Contact configuration | 1C & 2C (NO) |
|---|---|
| Rated load | 1.500 VA (250 VAC1) |
| Max. switching voltage | 250 VAC / 30 VDC |
| Max. peak current | 6 A (250 VAC1 / 30 VDC1) 2 A (*RVSAC) , 4 A (*RVSDC) |
| Contact resistance | ≤ 50 mΩ |
| Contact material | AgNi |
| Electrical life | ≥10⁵ cycles |
|---|---|
| Mechanical life | ≥10⁷ cycles |
| Operate/release time | ≤ 1000 mΩ (500 VDC) |
| Ambient temperature range | -40 °C ... +85 °C |
| Relative humidity | 5% - 85% |
| Atmospheric pressure | 86 - 106 KPa |
| Weight | 5,4 gr |
| Units per package | 50 |
